Evaluation of Coccidioides Exposures and
Coccidioidomycosis Infections among Prison
Employees
Marie A. de Perio, MD
Gregory A. Burr, CIH

Report No. 2013-0113-3198
January 2014

U.S. Department of Health and Human Services
Centers for Disease Control and Prevention
Health Hazard Evaluation Report 2013-0113-3198
National
Institute for Occupational Safety and Health

Page 1

Contents
Highlights................................................i
Abbreviations...................................... iv
Introduction.......................................... 1
Methods................................................ 2
Results................................................... 5
Discussion........................................... 16
Conclusions......................................... 20
Recommendations............................. 21
Appendix A......................................... 24
Appendix B.......................................... 25
Appendix C.......................................... 26
References........................................... 27

The employer is required to post a copy of this report for 30 days at or near the
workplace(s) of affected employees. The employer must take steps to ensure
that the posted report is not altered, defaced, or covered by other material.

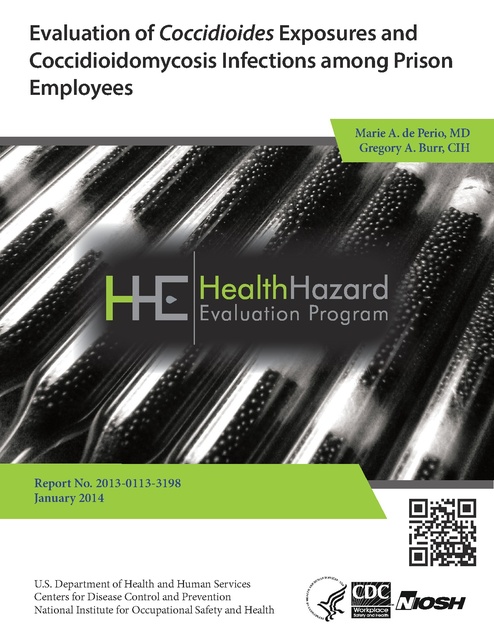

The cover photo is a close-up image of sorbent tubes, which are used by the HHE
Program to measure airborne exposures. This photo is an artistic representation that may
not be related to this Health Hazard Evaluation. Photo by NIOSH.
Page 2

Health Hazard Evaluation Report 2013-0113-3198

Highlights of this Evaluation
The Health Hazard Evaluation Program received a request from managers on behalf of a state
correctional and rehabilitation agency and a state correctional health care services agency. They
were concerned about potential employee exposure to the fungus Coccidioides at two state prisons
(prison A and prison B) in the Central Valley of California.

What We Did
●● We visited the prisons in June 2013.
●● We looked at work and occupational health policies and practices.
●● We reviewed medical and work information for the cases of coccidioidomycosis among
prison employees.
●● We privately interviewed prison employees and asked
them about their work practices and exposures.
●● We met with prison staff to learn about efforts to reduce
employee and inmate exposures to Coccidioides.
●● We looked at the ventilation systems in some
buildings. We chose buildings where more employees
worked such as clinics and offices. We also looked at
the ventilation in some inmate housing units.

What We Found
●● Both prisons were in areas where Coccidioides
naturally occurs.
●● We identified 65 confirmed cases of
coccidioidomycosis among prison A employees and
38 confirmed cases of coccidioidomycosis among
prison B employees over a 4½-year period.

We were asked to
determine the incidence
of coccidioidomycosis
among prison employees
and assess ways to reduce
potential employee
exposures. We found
103 confirmed cases of
coccidioidomycosis among
employees over a 4½-year
period. Employees are likely
exposed to Coccidioides in
the outdoor and indoor
work environment, as well
as outside of work.

●● We do not know if each confirmed case of
coccidioidomycosis among prison employees was due to an exposure at work or
outside of work.
●● Employees may be potentially exposed to Coccidioides in the outdoor and indoor work
environment, as well as outside of work.

What the Employer Can Do
●● Wet soil before disturbing it, and continuously wet it while digging to keep dust levels down.
●● Install door sweeps and seal gaps around doors and windows. Keep doors and windows
closed as much as possible.
●● Replace air filters in the ventilation systems as needed.

Health Hazard Evaluation Report 2013-0113-3198

Page i

What the Employer Can Do (continued)
●● Provide education and training during work hours to all prison employees on
coccidioidomycosis and ways to minimize exposure.
●● Consider closing the prison yards and advising inmates and employees to stay indoors
during dust storms and unusually windy or dusty days.
●● Consider offering the coccidioidal spherulin skin test to employees when it becomes
commercially available. This test may help employees evaluate their personal risk for
coccidioidomycosis.
●● Encourage prison employees to report suspected symptoms of possible
coccidioidomycosis to a supervisor.
●● Review injury and illness records for reports of coccidioidomycosis infections among
prison employees to look for trends over time.

What the Employees Can Do

●● Keep doors and windows closed as much as practical.
●● Avoid driving vehicles off pavement to keep dust levels down.
●● Follow agency policies, including those regarding excavation safety and
respiratory protection.
●● Report suspected symptoms of possible coccidioidomycosis to a supervisor.

Page ii

Health Hazard Evaluation Report 2013-0113-3198

This page left intentionally blank.

Health Hazard Evaluation Report 2013-0113-3198

Page iii

Abbreviations
CDC
CDPH
CSTE
cfm
CFR
MERV
NIOSH
OSHA

Page iv

Centers for Disease Control and Prevention
California Department of Public Health
Council of State and Territorial Epidemiologists
Cubic feet per minute
Code of Federal Regulations
Minimum efficiency reporting value
National Institute for Occupational Safety and Health
Occupational Safety and Health Administration

Health Hazard Evaluation Report 2013-0113-3198

Introduction
The Health Hazard Evaluation Program received a request from managers at a state
correctional and rehabilitation agency and a state correctional health-care services agency.
It concerned potential employee exposure to the fungus Coccidioides at two state prisons
(prison A and prison B) in the Central Valley of California. We were asked to determine the
incidence of coccidioidomycosis among prison employees and to assess ways to minimize
exposures. We evaluated the prisons in June 2013.

Background
At the time of our evaluation, the state correctional and rehabilitation agency operated
33 adult prisons statewide. In May 2013, the in-state inmate population was 124,741
and the parole population was more than 52,730 [California Department of Corrections
& Rehabilitation 2013]. The agency had approximately 69,000 employees, including
custody and support staff. The state correctional health care services agency, responsible
for providing medical care to inmates, was placed under a federal receivership in 2005.
At the time of our evaluation, this health care services agency was still under the federal
receivership. This agency had approximately 7,000 employees, including health care
personnel and administrative staff.
Prison A opened in 1994 and provided long-term housing and services for minimum,
medium, and maximum custody inmates. Located in Fresno County in the Central Valley
of California, it covered 640 acres. The prison A inmate population in May 2013 was 3,558
[California Department of Corrections & Rehabilitation 2013]. In 2013, staff, including
custody and support staff, numbered over 1,300.
Prison B opened in 1987 and provided long-term housing and services for minimum and
medium custody inmates. Located in Kings County in the Central Valley of California, it
covered 640 acres. The prison B inmate population in May 2013 was 4,538 [California
Department of Corrections & Rehabilitation 2013]. In 2013, staff, including custody and
support staff, numbered over 1,500. The prisons are located within 11 miles of each other.

Coccidioidomycosis
Coccidioidomycosis, also known as valley fever, is a disease caused by a fungus of the
Coccidioides species, which grows in the soil in semiarid areas. Coccidioidomycosis is
endemic (native and common) in the southwestern United States, the Central Valley of
California, Mexico, and parts of Central and South America [CDC 2013a]. The disease
is considered hyperendemic in six California counties (Kern, Kings, Fresno, San Luis
Obispo, Tulare, and Madera) that historically have consistently had the highest incidence
of coccidioidomycosis. It is a reportable disease in states where it is endemic, including
California, New Mexico, Arizona, Nevada, Texas, and Utah. About 150,000 new infections
occur annually in the United States [Galgiani et al. 2005] though only over 22,000 cases were
reported in 2011 in the United States, suggesting that the disease is greatly underreported
Health Hazard Evaluation Report 2013-0113-3198

Page 1

[CDC 2013b]. The incidence of reported coccidioidomycosis increased substantially from
1998 to 2011, from 5.3 per 100,000 population in the endemic area (Arizona, California,
Nevada, New Mexico, and Utah) in 1998 to 42.6 per 100,000 in 2011 [CDC 2013b].
Coccidioidomycosis is acquired by inhaling Coccidioides arthrospores, or spores, that get
into the air when construction, natural disasters, or wind disturb soil contaminated with the
fungus [CDC 2013a]. It has been suggested that human illness could be caused by a single
spore [Pappagianis 1988; Galgiani 1993]. Additional information on the Coccidioides fungus
can be found in Appendix A. The infection cannot be spread from to person to person, or
from animals to people. Most people who get the disease live in or visit places where the
fungus is in the soil and engage in activities that expose them to soil dust. Such activities
include construction, agricultural work, military field training, and archeological exploration
[CDC 2013a].
About 60% of coccidioidomycosis infections are asymptomatic [Chiller et al. 2003]. People
who develop symptoms may experience a flu-like illness with fever, cough, headache,
rash, and muscle aches that are self-limited. Symptoms usually resolve on their own
without treatment, but antifungal medications can be used. A small percentage of infected
persons (< 1%) may develop widespread disseminated infection [Chiller et al. 2003].
People at increased risk for severe pulmonary disease are the elderly, those with diabetes
or recent smoking history, and people of low socioeconomic status [CDC 2014]. People
at greater risk for developing disseminated infection include people of African American
and Asian (particularly Filipino) descent, pregnant women during their third trimester, and
immunocompromised persons [CDC 2013a]. Coccidioidomycosis has been shown to be
costly and debilitating, with nearly 75% of patients in whom the disease has been recognized
missing work or school because of their illness and more than 40% requiring hospitalization
[Tsang et al. 2010].
Diagnosis of coccidioidomycosis can be made by looking for Coccidioides antibodies or
antigens in blood or other body fluids. Diagnosis can also be made through a tissue biopsy,
in which a small sample of affected tissue is taken from the body and examined under
a microscope or by culture where the fungus can be grown from the sample on special
nutrient plates. Beginning in the 1940s, skin testing was used to determine if a person has
been exposed to Coccidioides. The skin test indicated exposure to the fungus but not when
exposure occurred. However, Coccidioides skin test reagents have not been commercially
available in the United States for more than a decade [Ampel 2003]. No vaccine against
coccidioidomycosis is currently available.

Methods
The purpose of our evaluation was to (1) determine the incidence of coccidioidomycosis
among employees at the prisons, (2) assess the ventilation systems at the prisons, and (3)
recommend ways to improve coccidioidomycosis-related occupational health and infection
control practices. During visits in June 2013, we observed workplace conditions and work

Page 2

Health Hazard Evaluation Report 2013-0113-3198

processes and practices and spoke with employees. We excluded inmate employees from this
evaluation because inmates were the focus of another concurrent Centers for Disease Control
and Prevention (CDC) investigation.
Our evaluation included the following methods: (1) a review of relevant occupational health
policies and practices, (2) a review of work and medical information about confirmed
coccidioidomycosis cases among prison employees (Appendix B), (3) confidential medical
interviews with employees, (4) assessment of the ventilation systems in selected buildings, and
(5) assessment of environmental mitigation practices to reduce exposures to Coccidioides.

Review of Occupational Health Policies and Practices
We reviewed relevant work and occupational health policies and practices obtained from the
corrections agency and the correctional healthcare services agency. These included excerpts
from the supplemental operations manual, the written respiratory protection plans, the aerosol
transmissible diseases exposure control plans, and the excavation safety plan for prison B.

Review of Coccidioidomycosis Among Prison Employees
Coccidioidomycosis Confidential Morbidity Reports
We obtained annual employee rosters for each prison from 2009–2013 from the correctional
agency and the prisons. With assistance of the California Department of Public Health
(CDPH) Infectious Diseases Branch, we matched the names on these rosters to the
CDPH database that contains confidential morbidity report data on reported confirmed
coccidioidomycosis cases in California. CDPH uses the Council of State and Territorial
Epidemiologists (CSTE) case definition for coccidioidomycosis, which includes clinical and
laboratory criteria [CDC 2012a]. Details about the case definition can be found in Appendix
B. We identified 276 possible matches at prison A and 216 possible matches at prison B. We
then obtained more information from agency headquarters and the prisons on the possible
employee matches, including sex, dates of birth, last four digits of social security numbers,
home addresses, and dates of employment, to confirm that these coccidioidomycosis cases
reported to CDPH occurred in individuals employed at either prison. We considered a match
to be a coccidioidomycosis case reported to CDPH with the same name and same date of
birth and/or same last four digits of social security numbers. For cases reported to CDPH that
were missing date of birth or social security numbers, we considered a confirmed match if the
employee was listed as a correctional facility employee in the confidential morbidity report.
We excluded coccidioidomycosis cases among employees that were reported to CDPH prior
to their date of hire.
We calculated the crude (unadjusted) 4-year incidence and the crude average annual
incidence of coccidioidomycosis for prison A employees and prison B employees. First, we
calculated the crude 4-year incidence by dividing the total number of coccidioidomycosis
cases among employees at each prison during 2009–2012 by the mid-point number of
employees at the respective prison between 2010 and 2011. We then divided this crude
4-year incidence by 4 to obtain the crude average annual incidence during 2009–2012.
Health Hazard Evaluation Report 2013-0113-3198

Page 3

Using information from the confidential morbidity report and the corrections agency, we
described personal and work characteristics of the employees with coccidioidomycosis.
Coccidioidomycosis Reports from Other Sources
We obtained and reviewed information on the coccidioidomycosis-related reports from the
Occupational Safety and Health Administration (OSHA) 300 Logs of Work-Related Illnesses
and Injuries from 2009 through mid-2013 for both prisons. Employer representatives at each
prison extracted all entries that reported coccidioidomycosis infection, and we eliminated
duplicate entries. According to agency representatives at the time of the evaluation,
employees were not required to submit laboratory documentation of infection.
We attempted to obtain coccidioidomycosis-related Doctor’s First Reports of Occupational
Injury or Illness from the California Department of Industrial Relations for employees at
both prisons from 2009–2013. These reports are required to be completed by an employee’s
physician within 5 days of initial examination for every occupational injury or illness.
These reports are then sent to the employer’s workers’ compensation insurance carrier or the
insured employer.

Confidential Medical Interviews with Employees
We invited employees from all job categories working during regular business hours and
employees working first, second, and third watch (a non-probability, convenience sample)
to participate in individual, semi-structured confidential medical interviews to obtain
information about working conditions and possible risk factors for disease. During these
interviews, we discussed their work, time spent outdoors at work and outside of work, work
tasks such as soil disrupting activities, respirator use, pertinent medical history, and residence
in areas where Coccidioides is found.

Assessment of Environmental Practices
We met with headquarters and local facilities and engineering staff at both prisons to learn
about environmental mitigation efforts to minimize employee and inmate exposures to
Coccidioides. We obtained copies of soil stabilization plans proposed for both prisons using
Soil-Sement® (a water-based acrylic and polyvinyl acetate polymer). We reviewed policies
and practices that could disturb the soil, such as excavation, mowing, soil disking (shallow
plowing), and security sweeps along the perimeter of the prisons.

Ventilation Assessment
We met with facilities and engineering staff to discuss the ongoing upgrade to the air filters
used in many of the ventilation systems at the prisons. We visited offices, health clinics, and
inmate housing units to observe the types of ventilation systems and air filters used in these
systems, and to look for evidence of mold or water intrusion. Because of the expansiveness
of the prisons, where dozens of structures were spread across 600+ acres at each complex,
we selected buildings where more prison employees worked (such as health clinics and
administrative offices). Because the inmate living units were structurally similar within each
Page 4

Health Hazard Evaluation Report 2013-0113-3198

prison complex, we randomly selected one or two living units at each prison for our walkthrough building survey and ventilation assessment. We measured temperature, relative
humidity, and carbon dioxide. Carbon dioxide levels are used to evaluate the adequacy of
ventilation systems in providing outdoor air to occupied spaces. We used ventilation smoke
tubes to visually evaluate airflow patterns, and a TSI Model EBT731 Balometer to measure
the amount of air provided by air handling units to some occupied spaces.

Results
Review of Occupational Health Policies and Practices
We reviewed excerpts from the supplemental operations manual, the written respiratory
protection plans, the aerosol transmissible diseases exposure control plans, and the
excavation safety plan for prison B. According to the June 2013 supplemental operations
manual for both prisons, the watch commander can put an institutional yard recall into place
for prolonged power outages during non-daylight hours. An institutional yard recall means
that all inmates on the exercise yards must return to their assigned housing units. The watch
commander can also initiate limited visibility operations when the guards at the perimeter
tower posts are unable to see one another clearly and distinctly. Implementing limited
visibility operations means that yard exercise and outdoor programs within the security
perimeter must stop. At the time of the evaluation, neither prison had procedures for stopping
yard exercise and outdoor programs for dust storms or unusually dusty or windy days. At
prison A, the chief medical executive reportedly had the authority to instruct custody staff
to make announcements to the general inmate population on days with high winds, advising
them to refrain from outdoor recreation and to remain indoors. This was an unwritten policy.
The February 2011 aerosol transmissible diseases exposure control plan covered both the
corrections agency and the correctional health care services agency. This plan included
sections on engineering and work practice controls and personal protective equipment,
respiratory protection, medical services, training, and record keeping. Appendix B of this
plan contained a list of aerosol transmissible pathogens or diseases for the purposes of
Section 5199 of the California Aerosol Transmissible Diseases standard [8 CCR 5199].
This list identifies diseases and pathogens requiring airborne infection isolation, such as
tuberculosis and measles, and those requiring droplet precautions, such as influenza and
bacterial meningitis. The list does not include Coccidioides. Generally, this standard does not
apply to Coccidioides outside of the laboratory setting [8 CCR 5199].
At the time of the evaluation, the respective fire chiefs managed the respiratory protection
programs for prisons A and B. Both programs covered employees and inmate workers and
contained the basic elements required by the OSHA respiratory protection standard, including
respirator selection, medical evaluation, respirator training, fit testing, respirator use, and
handling of disposable respirators [29 CFR 1910.134]. The programs also listed employees
assigned to areas or jobs that required the use of respiratory protection. The list for prison A
included most plant operations employees as well as hazardous material specialists. The list
for prison B included some plant operations employees, all custody employees, and some
Health Hazard Evaluation Report 2013-0113-3198

Page 5

healthcare employees. Neither program included procedures for using respirators to protect
employees or inmate workers from potential exposures to Coccidioides. However, in June
2013, a memorandum was issued to all prison A employees by the chief medical executive,
which recommended that staff wear an N95 filtering facepiece respirator when outdoors on
windy or dusty days.
The associate warden for business services directed the excavation safety program at prison
B. This written program included information on training, excavation requirements such
as use of structural ramps and ladders, protective system requirements such as sloping and
benching systems, and accident investigations. This program did not include procedures
for wetting down surfaces prior to excavation. The program had information about using
eye protection, hard hats, harnesses with lifelines, and hearing protection, but respiratory
protection was not mentioned.

Review of Coccidioidomycosis Among Prison Employees
Coccidioidomycosis Confidential Morbidity Reports
We identified 65 confirmed cases of coccidioidomycosis reported to CDPH among prison
A employees from January 1, 2009, to June 10, 2013. We identified 38 confirmed cases of
coccidioidomycosis reported to CDPH among prison B employees from January 1, 2009, to July
16, 2013. The coccidioidomycosis cases were reported among prison A and B employees by nine
California counties of residence during this time period. Reporting counties included Fresno,
Kings, Tulare, Kern, San Luis Obispo, Santa Clara, Madera, Riverside, and Los Angeles.
We calculated crude 4-year and crude average annual incidence rates of coccidioidomycosis
for prison A and B employees from 2009 to 2012. The crude 4-year incidence rate of
coccidioidomycosis among prison A employees was 4,156 cases per 100,000 employees from
2009 to 2012. The average annual incidence for prison A employees was 1,039 cases per
100,000 employees over this time. The crude 4-year incidence rate of coccidioidomycosis
among prison B employees was 2,044 cases per 100,000 employees from 2009 to 2012. The
average annual incidence for prison B employees was 511 cases per 100,000 employees over
this time.
For the confirmed cases among employees in 2009–2012, the 12-month combined incidence
over this 4-year period did not display a clear seasonal pattern (Figure 1).
Of the 65 confirmed cases of coccidioidomycosis among prison A employees, 57 (88%) were
male, and 8 (12%) were female. The median age of cases was 41 years (range: 24–67 years).
Two deaths were reported; the number of hospitalizations is unknown. The median amount of
time worked at the prison before onset of symptoms was 4 years (range: 2 months–16 years).
Other demographic and work characteristics of the 65 employees are shown in Table 1. All
but two employees with confirmed cases of coccidioidomycosis resided in one of the six
hyperendemic California counties (Table 1).

Page 6

Health Hazard Evaluation Report 2013-0113-3198

Figure 1. Number of coccidioidomycosis cases among prison A and B employees by month of
symptom onset during 2009–2012.

The most common job categories at the time of diagnosis, as collected from agency employee
rosters, of the 65 prison A employees with confirmed coccidioidomycosis were custody (n =
48), healthcare (n = 7), and administrative (n = 5). Only seven cases had occupation/job title
and occupational setting recorded in the confidential morbidity report that was submitted to
CDPH. One case incorrectly had a school listed as the occupational setting. For the other 57
cases, these fields were blank.
Of the 38 cases of coccidioidomycosis among prison B employees, 27 (71%) were male,
and 11 (29%) were female. The median age of cases was 44 years (range: 24–63 years). One
death was reported; the number of hospitalizations is unknown. The median amount of time
worked at the prison before onset of symptoms was 8 years (range: 2 months–23 years).
Other demographic and work characteristics of the 38 employees are shown in Table 1.
All but one employee with confirmed cases of coccidiodomycosis resided in one of the six
hyperendemic counties (Table 1).
The most common job categories at the time of diagnosis, as collected from agency employee
rosters, were custody (n = 26), administrative (n = 5), and healthcare (n = 4). Only three
cases had occupation/job title and occupational setting recorded in the confidential morbidity
report that was submitted to CDPH. For the other 35 cases, these fields were blank.

Health Hazard Evaluation Report 2013-0113-3198

Page 7

Table 1. Demographic characteristics of employee cases of coccidioidomycosis
Demographic characteristic

No. (%) prison A employees
n = 65

No. (%) prison B employees
n = 38

57 (88)

27 (71)

17 (26)

9 (24)

African-American/Black

3 (5)

3 (8)

Asian

2 (3)

1 (3)

Male
Race
White

Other

2 (3)

1 (3)

40 (62)

24 (63)

Hispanic/Latino

16 (25)

10 (26)

Non-Hispanic/Non-Latino

11 (17)

6 (16)

Unknown

38 (59)

22 (58)

Fresno

34 (52)

13 (34)

Kings

22 (34)

13 (34)

Tulare

4 (6)

6 (16)

Madera

3 (5)

0 (0)

Kern

0 (0)

3 (8)

San Luis Obispo

0 (0)

2 (5)

Other

2 (3)

1 (3)

48 (74)

26 (68)

Administrative

5 (8)

5 (13)

Healthcare

7 (11)

4 (11)

Plant operations

2 (3)

0 (0)

Education/vocation

0 (0)

1 (3)

Other*

3 (5)

2 (5)

Unknown
Ethnicity

California county of residence

Job Category
Custody

*Job titles in the other category included chaplain, industrial supervisor, and correctional supervisory
cook.

Coccidioidomycosis Reports from Other Sources
We reviewed coccidioidomycosis-related reports from the OSHA Logs from 2009 to 2013 for
both prisons. Prison A recorded 61 employees with reported work-related coccidioidomycosis
in the OSHA Logs from 2009 to May 23, 2013. Forty (66%) of these employees were also
reported to CDPH as confirmed coccidioidomycosis cases.
Job title groups of the 61 employees included custody (n = 43), healthcare (n = 7),
administration (n = 5), plant operations (n = 4), and other (n = 2). Of these 61 employees, 41
(67%) were reported to miss days from work. The median number of days away from work
for these 41 employees was 70 (range: 2–367 days).

Page 8

Health Hazard Evaluation Report 2013-0113-3198

Prison B recorded 42 employees with reported work-related coccidioidomycosis in the
OSHA Logs from 2009 to June 12, 2013. Job title groups of the 42 employees included
custody (n = 22), healthcare (n = 8), administration (n = 5), other (n = 5), education/vocation
(n = 1), and plant operations (n = 1). Of these 42 employees, 29 (69%) were reported to miss
days from work. The median number of days away from work for these 29 employees was
95 (range: 11–730 days). Only 21 (50%) of the 42 employees in the OSHA Logs were also
reported to CDPH as confirmed coccidioidomycosis cases.
We were unable to obtain physician documentation or laboratory testing results for cases
reported in the OSHA Logs from each prison. We were also unable to obtain the Doctor’s
First Reports of Occupational Injury or Illness from the California Department of Industrial
Relations from 2009–2013.

Confidential Medical Interviews with Employees
At prison A, we interviewed 98 of 99 invited employees. At prison B, we interviewed all 74
invited employees.
Demographic and Health Characteristics of Interviewed Employees
The median age of interviewed employees was 45 years (range: 25–74 years) at prison A and
48 years (range: 27–67 years) at prison B. Most employees were male (64% at prison A and
70% at prison B). Only one employee reported being pregnant at the time of the interview.
Interviewed employees most commonly self-reported their race as white (64% for prison
A and 54% for prison B). Between 5%–6% of interviewed employees at both prisons selfidentified their race as Filipino and between 2%–3% self-reported their race as black/African
American. Forty-two percent of interviewed employees at both prisons self-reported their
ethnicity as Hispanic/Latino.
The median number of years that employees reported living in one of the six hyperendemic
California counties was 35 (range: 0.5–67 years) at prison A and 34 years (range: 6–61 years)
at prison B. The median number of years employees reported living in one of the six endemic
states or Mexico was 38 (range: 6.5–67 years) at prison A and 40 years (range: 14–63 years)
at prison B.
Work Characteristics of Interviewed Employees
All interviewed prison employees were employed full time. The median hours worked per
week was 40 hours for both prisons, although some employees reported working up to 80
hours. The median time worked at the prison was 7 years (range: 6 months–19 years) at
prison A and 8 years (range: 4 days–22 years) at prison B. Other work characteristics are
shown in Table 2.

Health Hazard Evaluation Report 2013-0113-3198

Page 9

Table 2. Work characteristics of interviewed employees
Work characteristic

No. (%) prison A employees
n = 98

No. (%) prison B employees
n = 73–74*

Custody

46 (47)

32 (43)

Administration

19 (19)

11 (15)

Plant operations

13 (13)

9 (12)

Healthcare

12 (12)

10 (14)

Education/vocation

8 (8)

4 (5)

Other†

0 (0)

8 (11)

First watch

12 (12)

9 (12)

Second watch

24 (25)

16 (22)

Third watch

14 (14)

17 (24)

Business hours

48 (49)

31 (42)

9 (9)

5 (7)

Job title group

Work shift

Has another job
*Sample sizes varied because of missing values.

†Other more common job title groups included cook and prison industry employee.

The median time spent outdoors during the workday was 2 hours (range: 10 minutes–8
hours) for prison A, and 1.5 hours (range: 0–9 hours) for prison B. Work activities of the
interviewed employees are shown in Table 3.
Table 3. Work activities of interviewed employees
No. (%) prison A employees
n = 97–98*

No. (%) prison B employees
n = 73–74*

10 (10)

13 (18)

Walking from building to building

98 (100)

73 (99)

Security checks

27 (28)

15 (20)

Patrolling

22 (22)

13 (18)

Maintenance

12 (12)

9 (12)

Landscaping

3 (3)

2 (3)

Delivery

12 (12)

7 (9)

Other†

33 (34)

32 (43)

Soil disruption activities

29 (30)

13 (18)

Outside in dust storm during job

78 (80)

63 (85)

Work activity
Eat outside during work
Outside work activities

*Sample sizes varied because of missing values.
†Other outside work activities included alarm testing and response, escorting, supervising inmates,
and riding in carts.

In total, 30% of prison A employees and 18% of prison B employees who were interviewed
reported that their job involved disruption of soil. At prison A, of the 29 employees who
reported disrupting soil, they reported doing this constantly (n = 2), sometimes (n = 14), and
rarely (n = 13). At prison B, of the 13 employees who reported disrupting soil, 4 reported
Page 10

Health Hazard Evaluation Report 2013-0113-3198

doing this constantly, and 9 reported doing this sometimes. The most commonly reported
soil disruption activities at both prisons included grid searches and digging for contraband
in the soil by custody employees, and drilling/digging for maintenance and repairs by plant
operations employees. Equipment used included shovels, rakes, pick axes, backhoes, and
garden tractors.
All 172 interviewed employees reported having heard of coccidioidomycosis or valley fever
prior to the start of the interview. At each prison, 66% of interviewed employees reported
having received training on coccidioidomycosis related to their work. Types of training
reported by employees included on-the-job training, pamphlets in paychecks, memos,
bulletin board posters, department safety meetings, classroom training (given by the medical
director at prison A), and modules as part of annual block or in-service training.
Regarding respirator access, 67 (68%) employees at prison A and 55 (76%) employees at
prison B reported having access to an N95 filtering facepiece respirator or other respirator.
In total, 24 (25%) employees at prison A and 21 (28%) employees at prison B reported ever
using an N95 filtering facepiece respirator or other respirator when exposed to dust during
their work at the prisons. At prison B, the most common facial protection devices reported to
be used were N95 filtering facepiece respirators (n = 19), half-mask elastomeric air purifying
respirators (n = 3), and non-National Institute for Occupational Safety and Health (NIOSH)
approved masks including surgical masks (n = 7) and dust masks (n = 7). At prison B, the
most common facial protection devices were N95 filtering facepiece respirators (n = 18)
and non-NIOSH approved masks including surgical masks (n = 13) and dust masks (n = 1).
Employees reported using respirators or masks when walking or working outside during
dusty days or during dust storms, digging/jackhammering, and changing air filters in the
ventilation systems. At prison B, employees reported wearing respirators or masks when
passing out medications during pill call. Employees dispensed medication to inmates through
an open window, and many wore respirators to protect themselves from outdoor dust that
would blow into the building.
Potential Exposures Outside of Work
The median time spent outdoors outside of work was 2 hours per day (range: 10 minutes–6.5
hours) for prison A employees and 2.5 hours (range: 0–14 hours) for prison B employees.
Only one employee from prison B reported spending no time outdoors outside of work. The
most common outdoor activities of interviewed employees outside of work included hiking,
walking, running, gardening, biking, golf, and other outdoor sports.
Health Characteristics of Interviewed Employees
In total, 21 (21%) employees at prison A and 14 (19%) employees at prison B reported
having at least one current underlying medical condition placing them at higher risk for
disseminated disease. These conditions included lung disease such as asthma or emphysema,
diabetes mellitus, taking immunosuppressive medications, heart disease, kidney disease,
and cancer requiring chemotherapy or radiation therapy. At each prison, 9% of employees
reported smoking tobacco at the time of the interviews.

Health Hazard Evaluation Report 2013-0113-3198

Page 11

At prison A, 13 (13%) employees reported being diagnosed with coccidioidomycosis since
starting work at the prison. Symptom onset ranged from 1999–2012, and three employees
reported being hospitalized. Of the 13 employees, 11 reported this illness to their employer,
and employees reported being absent from work from 0 days to 5 months for this illness.
Job title groups of these employees included custody (n = 9), education/vocation (n = 2)
healthcare (n = 1), and plant operations (n = 1). The median number of years these 13
employees lived in the Central Valley was 34 (range: 2.5–49 years). None of these 13
employees self-identified as Black or African American or Filipino; seven reported being of
Hispanic or Latino ethnicity. Only one of the 13 employees reported having an underlying
medical condition (diabetes) placing him/her at higher risk for disseminated disease.
At prison B, three (4%) employees reported being diagnosed with coccidioidomycosis since
starting work at the prison. Symptom onset ranged from 2001–2011, and one employee
reported being hospitalized. All three employees reported this illness to their employer,
and they reported being absent from work from 7 days to 7 months for this illness. Job title
groups of these employees included custody (n = 1), and other (n = 2), which consisted of
cook and prison industry employee. The median number of years these three employees
lived in the Central Valley was 45 (range: 12–54 years). None of these three employees selfidentified as Black or African American or Filipino; two reported being of Hispanic or Latino
ethnicity. Only one of the three employees reported having an underlying medical condition
at higher risk for disseminated disease.
Of the five prison A employees who reported a coccidioidomycosis diagnosis between 2009
and the time of the interviews, three had their diagnoses reported to CDPH. The one prison
B employee who reported a coccidioidomycosis diagnosis between 2009 and the time of the
interviews had his diagnosis reported to CDPH.

Assessment of Environmental Practices
The facilities and engineering staff at both prisons reported not conducting major soil
disruption activities when wind speeds were “unusually high.” Dry road sweeping was not
done, and water was used to suppress dust during major soil disrupting activities. Staff at
both prisons reported reducing the amount of soil disking at the perimeter of the prison
complex. Disking was done for security because it removed unwanted vegetation and evened
the ground, thus minimizing potential hiding spots for inmates and contraband. Prison B staff
estimated they had reduced disking by 90% in 2013 compared to prior years, and had stopped
disking inside the prison fence. Prison B also limited mowing to between February and April.
Soil stabilization had been done at prison A in 2011, but not at prison B. New plans called
for stabilizing approximately 93 acres at prison A, and 276 acres at prison B. Most of the
stabilized acreage was at the perimeter of each prison complex, although soil surrounding
inmate housing units, offices, and clinics was also scheduled for treatment.
We discussed re-vegetation plans with the facilities and engineering staff at both prisons.
Because the prisons are areas with arid climates, state and county water restrictions and the
Page 12

Health Hazard Evaluation Report 2013-0113-3198

cost of purchasing water present challenges to maintaining vegetation. At the time of our
evaluation, the inmate exercise yards at both prisons were grass-covered. However, much of
the soil around clinics, offices, and along the perimeter of the prison complex was bare or
covered with gravel. The facilities and engineering staff at prison B told us that watering the
inmate exercise yards had restarted in the spring of 2013, and that prior to this the exercise
yards had bare soil. Re-vegetation efforts elsewhere at prison B had slowed because of the
cost of purchasing water.
In discussions during and after our site visit, prison managers asked us about the usefulness
of environmental sampling for dust and for Coccidioides and monitoring wind speed and
direction at the prisons to predict environmental conditions that may place prison employees
at greater risk of exposure to this fungus. At the time of our evaluation, no environmental
sampling for dust or Coccidioides had been done. A meteorological station at prison A
recorded wind direction, wind speed, and rainfall. However, according to prison managers,
these data were used for wastewater treatment reporting requirements and not to monitor for
high wind conditions. We were also asked about the effectiveness of respiratory protection in
minimizing employee exposures to Coccidioides.

Ventilation Assessment
Both prisons were replacing minimum efficiency reporting value (MERV) 8 air filters with
MERV 13 or 14 rated air filters at the outdoor air supply for air handling units, beginning
with inmate housing units. No air filter upgrades had yet been made to the mechanical
heating and air-conditioning units (package units) serving the clinics and administrative
offices. However, some clinic buildings that we evaluated were already using high efficiency
air filters per their original ventilation design.
During our walk-though evaluations of selected offices, clinics, and inmate housing units,
we looked for visual evidence of mold or water intrusion and saw none. We measured
temperature, relative humidity, and carbon dioxide. We used the latter to evaluate the
adequacy of ventilation systems in providing outdoor air to occupied spaces. Most of
the offices and clinics that we surveyed were mechanically ventilated (air-conditioned).
Temperatures were within recommended summer comfort guidelines of 75°F to 80.5°F,
assuming slow air movement and 50% relative humidity [ASHRAE 2010a]. ASHRAE
also recommends maintaining relative humidity at or below 65%, which it was. Excessive
humidity can promote the excessive growth of microorganisms and dust mites [ASHRAE
2010a]. Finally, indoor carbon dioxide concentrations were similar to outdoor concentrations,
suggesting that an adequate amount of outdoor air was being provided [ASHRAE 2010b].
Inmate housing units were cooled with roof-mounted indirect and direct evaporative units
(described in detail below). Because the housing units were not air-conditioned, temperature
and relative humidity levels were generally higher than in the offices and clinics, and
occasionally exceeded ASHRAE summer comfort guidelines of 75°F to 80.5°F, assuming
50% relative humidity.

Health Hazard Evaluation Report 2013-0113-3198

Page 13

Prison A Ventilation Assessment
At prison A, the inmate living units, except for the administrative segregation building
that we did not evaluate, had two-person cells positioned across three of the four sides
of each two-story living unit. The inmate housing units were cooled with roof-mounted
indirect and direct evaporative units. Per design, the evaporative coolers switched from
indirect evaporative cooling to indirect and direct evaporative cooling based on indoor air
temperature. Heat was provided by natural gas.
We visually examined evaporative air cooler #2 in inmate living unit B5. The state
correctional and rehabilitation agency had installed testing equipment on this air cooler
to evaluate the impact of the new air filters. The evaporative air cooler appeared well
maintained with no evidence of microbial contamination, and the air filters appeared clean
and correctly installed.
We examined the airflow patterns in two inmate housing units (B4 and B5) using ventilation
smoke tubes to see if the buildings were under positive pressure relative to the outdoors as
is recommended, meaning that indoor air would flow from an open door or window to the
outdoors. When measured at the one entrance door in each building, B5 was under positive
pressure, and B4 was under negative pressure relative to the outdoors. There was a gap
around both entrance doors when closed. We observed a similar airflow pattern at the single
operable window in the second floor control booth in each building. The window in building
B5 was slightly open, and the control booth was under positive pressure relative to the
outdoors. The window in building B4 was open about halfway and this control booth was
under negative pressure relative to the outdoors. We were told that the control booth officer
decided whether the exterior window was opened. The airflow direction at the entrance door
and operable window could change depending on ambient wind direction and wind speed.
We measured the airflow provided to the second floor control booths in B4 and B5. Unlike
the inmate housing areas, the control booths were air-conditioned and heated by roofmounted package units. The unit serving the B4 control booth was not initially operating
when we arrived, and the thermostat in the control booth had been turned off. The bathroom
exhaust fan in the B4 control booth was also not operating. The airflow measured at the
ceiling diffusers ranged from 97–299 cubic feet per minute (cfm) in the B4 control booth and
224–336 cfm in the B5 control booth.
We visually examined two of the roof-mounted package units that served the clinical
treatment center. Air handler RTU-6 had a metal mesh prefilter and a high-efficiency
particulate air filter (Airguard Variflow VMB-604). The duct lining near the return air duct
in RTU-6 was dirty and damaged. Another package unit (RTU-5) was not operating (cause
unknown). The main entrance to the clinical treatment center was under positive pressure
relative to the outdoors with the door closed. However, when we arrived at the clinical
treatment center, the entrance door had been propped open with a rock. This practice allows
unfiltered air to enter the building. An employee in the clinical treatment center explained
that the entrance door was propped open during inmate transfers.

Page 14

Health Hazard Evaluation Report 2013-0113-3198

The airflow pattern at the main (west) entrance to office building 800 was positive to
the outdoors. The airflow pattern at the east doorway leading from the office building to
the prison yards was in the opposite direction, meaning that air flowed into the building.
However, airflow direction at either entrance could change depending on prevailing wind
direction and wind speed. Several restrooms and one inmate restroom/custodial closet in
building 800 were under positive pressure relative to the hallway. This is not recommended
because odors from these restrooms could enter occupied areas.
Prison B Ventilation Assessment
At the time of the evaluation, inmates lived in open dormitories with no individual cells
except for administrative segregation. We toured the “270 building” and “E bed” dormitory
styles. The direct evaporative coolers for the inmate living units were on the roof (“270
buildings”) or on the back wall (“E-bed”). A central power plant provided steam or hot water
for building heat, showers, laundry, and cooking. Most of the clinics and administrative areas
were mechanically cooled and heated with roof-mounted package units.
According to facility managers, for approximately the past 10 years, the direct evaporative
coolers for the inmate living units used MERV 8 panel air filters and no sock filters
even though the evaporative coolers were designed for both. In 2013, the prison began
installing MERV 13 panel prefilters and MERV 14 sock filters (as the secondary filter) in
the evaporative coolers. Because such an air filter upgrade could affect the quantity of air
provided by the ventilation system to the indoor spaces, we measured the airflow to inmate
dorms in building 410 under different air filter arrangements. The evaporative air cooler that
we evaluated appeared well maintained with no evidence of microbial contamination, and the
air filters were clean and correctly installed.
Airflow to the inmate dorms decreased by as much as 10% when the MERV 8 filter was
replaced by MERV 13 and 14 filters (Appendix C, Figures C1 and C2). In response to inmate
concerns regarding perceived poor ventilation in building 410, we measured airflow from
all three evaporative air coolers. As shown in Table 4, airflow averaged 286 cfm among the
eight dorms serviced by unit C, compared to an average of 551 cfm among the dorms serviced
by unit A, and 607 cfm among the dorms serviced by unit B. We visually checked unit C;
it appeared to be operating normally, and the dampers inside the supply air diffusers in the
inmate dorms were open. We were unable to determine why the airflow varied between these
identical air coolers in building 410.

Health Hazard Evaluation Report 2013-0113-3198

Page 15

Table 4. Airflow to inmate dorms in Building 410 at prison B, June 6, 2013
Evaporative cooler

Floor
1st

Unit A*
2nd

1st
Unit B*
2nd

1st
Unit C*
2nd

Inmate dorm

Airflow (cfm)

1

673

2

675

3

185

4

738

13

636

14

447

15

757

16

300

5

849

6

659

7

708

8

809

17

409

18

572

19

383

20

466

9

317

10

223

11

370

12

436

21

207

22

276

23

287

24

178

Comments

Damper closed

Plastic on bottom of grill
Plastic inside grill

cfm = cubic feet per minute
*Airflow measurements were taken with MERV 13 prefilters and MERV 14 sock (secondary) filters
in place.

In response to concerns from some clinic employees about outdoor dust entering their
work area, we checked the airflow patterns in two rooms in the old clinic used to dispense
medication to inmates. Using ventilation smoke tubes, we found that outdoor air flowed
into the room when employees opened an exterior pass-through service window in order to
dispense drugs to the inmates.

Discussion
We identified 65 confirmed cases of coccidioidomycosis among prison A employees and 38
confirmed cases among prison B employees from January 1, 2009, through mid-2013. The
crude average annual incidence of coccidioidomycosis between 2009 and 2012 was 1,039
cases per 100,000 employees at prison A and was 511 cases per 100,000 employees at prison
B. We are unable to state whether the difference between the prisons reflects a real difference
in risk and, if so, whether it is related to work or non-work factors.
Page 16

Health Hazard Evaluation Report 2013-0113-3198

The crude average annual incidence among prison employees appears to be higher than the
crude average annual incidence reported among the general non-inmate adult population in
the surrounding Fresno (40 cases per 100,000 persons) and Kings (110 cases per 100,000
persons) [Mohle-Boetani 2013; Tabnak 2013]. However, comparisons of crude incidence
rates between employees and the adult population of the surrounding county should be
interpreted cautiously because of unmeasured confounding factors in the background
population. We were not able to obtain age-, sex-, and race-adjusted incidence calculations
for the comparison populations, and therefore, avoided making any statistical comparisons.
It is also possible that reporting or testing bias (or increased reporting or testing among
the employees) due to heightened awareness and concern could have contributed to the
difference in crude incidence rates.
It was not possible to determine if each confirmed case of coccidioidomycosis among prison
employees was due to an exposure at work or outside of work. The vast majority of prison
employees with confirmed cases of coccidioidomycosis resided in a hyperendemic area,
and our interview findings revealed that employees are likely exposed to Coccidioides both
at work and outside of work. At work, almost all interviewed employees at each prison
reported spending some time outdoors. Even walking from building to building could pose
a risk for exposure to Coccidioides. Almost one-third of interviewed employees reported
having a job that involved disruption of soil. Activities included grid searches and digging
for contraband in the soil by custody employees and drilling/digging for maintenance and
repairs by plant operations employees. These activities could increase the risk of exposure to
Coccidioides. The excavation safety plan for prison B did not include wetting down soil prior
to excavation, although it was reportedly done in practice. The written respiratory protection
program did not include guidance for respirator use during soil disruption activities.
About 80%–85% of interviewed employees reported being outside in dust storms during
their job. This could increase their risk of exposure to Coccidioides. According to the
supplemental operations manual we reviewed, there are no written procedures for ending
yard exercise and outdoor programs for dust storms or for unusually dusty or windy days.
Environmental mitigation efforts, such as reducing soil disking, less frequent mowing,
paving roads, and wetting soil before it is disturbed, can reduce the dust levels. Soil
stabilization can reduce a form of wind erosion called saltation, the direct entrainment of fine
dirt and dust particles by wind. Saltation contributes to an effect called sandblasting, where
airborne dirt and dust particles repeatedly impact the soil surface downwind, dislodging even
more particles in the process. Researchers have speculated that saltation may rupture the
fungal structure of Coccidioides, and sandblasting can disperse the airborne Coccidioides
spores at wind speeds lower than those required to directly entrain either the fungus or its
spores [Zender and Talamantes 2005]. However, naturally occurring dust storms, combined
with ongoing soil disturbing activities such as farming and construction that occur on land
adjacent to each prison, can recoat stabilized soil and may reduce or shorten the possible
benefit of soil treatment. Consultation with the local Air Pollution Control District may be
valuable when considering environmental mitigation projects for dust control.

Health Hazard Evaluation Report 2013-0113-3198

Page 17

The prisons also face ongoing challenges to maintain and/or restore vegetation around office
buildings and clinics and to maintain grass in the inmate exercise yards. These challenges
result from external state and county water restrictions and the cost of purchasing water
above their allotment. Like soil stabilization, maintaining grass and other vegetation can
reduce saltation and sandblasting.
Regardless of the environmental mitigation effort, little to no data exists that demonstrate
the effectiveness of these measures in reducing airborne dispersal of Coccidioides [Brown
et al. 2013]. For example, airborne spores can travel for miles, and focal Coccidioides
sites may be small and/or unevenly distributed within endemic areas [Kirkland and Fierer
1996; Fisher et al. 2000; Brown et al. 2013]. Although these dust reduction measures may
lower the risk for localized airborne dispersion of Coccidioides, they neither eradicate
the organism from the soil nor prevent exposure to dust from areas outside of the prison
grounds. Nevertheless, reducing dust is a reasonable risk-based strategy to help to try to
reduce occupational coccidioidomycosis.
Managers from the state correctional health care services agency asked whether measuring
wind speed or doing air sampling for Coccidiodes may be useful in deciding how to reduce
employee’s exposure to Coccidiodes. Collecting local meteorological data, specifically wind
speed, may be useful in defining “unusually windy” conditions and making risk management
decisions on when outdoor work or exercise is permitted. However, we do not have specific
guidance on acceptable or unacceptable wind speeds in relation to the risk of exposure.
Regarding sampling, sensitive DNA-based methods for air or surface sampling specifically
for Coccidioides have not been widely accepted [Nguyen et al. 2013]. Though current limited
sampling methods are not likely to be helpful in assessing employee exposures or developing
risk-based control measures, future research to explore how improved testing and strategies
may yield valuable information are needed.
Our observations and discussions with employees during our walk-through surveys and
environmental assessments indicate that exposure to dust can occur indoors and outdoors.
For example, we saw open doors and windows in several buildings that allowed unfiltered air
to enter the occupied space. Employees can carry dust indoors on their clothing and shoes.
The practice of dispensing medication to inmates through an open exterior window in the old
clinic building at prison B resulted in an unnecessary employee exposure to outdoor dust.
Switching from a medium efficiency (MERV 8) filter to a higher efficiency (MERV 13 or 14)
filter should reduce employee and inmate exposure to dust while indoors. However, this filter
change will affect the performance of the ventilation system. For example, at prison B we
measured a 10% reduction in the volume of conditioned air provided to inmate housing units
after MERV 8 air filters were replaced by both MERV 13 prefilters and MERV 14 secondary
filters. This decrease in supplied air could affect occupant comfort. A lower efficiency and
less expensive prefilter could be used that would extend the life of the more expensive
secondary MERV 14 filter. Regardless, switching from lower to higher-efficiency air filters
will require developing a new replacement schedule to prevent filter overloading and possible
damage to the ventilation system. We understand that consideration was being given to
Page 18

Health Hazard Evaluation Report 2013-0113-3198

further upgrading to MERV 16 (or higher) filters. Such a decision should balance concerns of
reduced air flow, higher air filter cost, and more frequent maintenance. While there would be
a modest increase in efficiency in removing very small particles, Coccidiodes spores adhere
to soil particles of a wide size range [Das et al. 2012]. Thus, the benefits of modest increases
in filter efficiency may not be realized.
While evaluating the air filter changes, we responded to inmate concerns regarding perceived
poor ventilation in building 410 at prison B. We found differences in the quantity of outdoor
air supplied by three apparently identical air handling units serving the inmate living areas
(Table 8). The amount of outdoor air supply also differed between floors and between
inmate living areas. We saw one supply air diffuser that was closed, and several that were
partially blocked with plastic debris. These ventilation problems are unrelated to the primary
objectives of this evaluation, but they can contribute to poor indoor environmental quality.
All interviewed employees reported living in one of the six counties hyperendemic
for coccidioidomycosis, and the majority had spent many years in the area. Almost all
interviewed employees at each prison reported spending time outdoors outside of work.
Over 50% of employees reported gardening, another potential soil disruption activity. Thus,
employees are at risk of exposure to Coccidioides outside of work. The relative contributions
of work and nonwork exposure to the overall risk cannot be determined.
Nevertheless, coccidioidomycosis has been a recognized problem in inmates of state prisons
in the San Joaquin Valley of California, particularly prisons A and B. Annual incidence was
noted to be higher among inmates at these two prisons than in the general population of the
surrounding counties from 2000–2010 [Pappagianis 2007; California Correctional Health
Care Services 2012]. If this discrepancy in rates reflects actual differences, the reasons for
the higher rates among inmates are not entirely clear, but may include the possibility that
the inmate population includes a high proportion of immune-naïve or previously unexposed
inmates relocated from less-endemic areas [Brown et al. 2013]. It is also possible that testing
bias due to heightened awareness and health care access in the inmate population also could
have contributed to high rates.
Most employees with confirmed coccidioidomycosis and most employees with
coccidioidomycosis-related OSHA Log reports worked as custody employees. However,
since custody employees make up the majority of the employee population, they do not
appear to be represented in disproportionate numbers among cases. We do not know how
much time these employees spent outdoors during their job, or whether their infection was
due to an occupational exposure. We do know, however, that many custody employees
have outdoor job activities such as performing security checks, patrolling, escorting and
supervising inmates, and digging for contraband that may put them at risk. However,
administrative and healthcare employees, whose job duties do not typically involve outdoor
work, were also among the affected employees. We found that four licensed vocational
nurses were among the confirmed cases. These employees have responsibilities that include
handing out medications. At prison B nurses dispensed medication to inmates using pass-

Health Hazard Evaluation Report 2013-0113-3198

Page 19

through windows that allowed unfiltered outdoor air to enter the pill room, unnecessarily
exposing the nurses to outdoor dust.
Only 8%–11% of employees with confirmed coccidioidomycosis had occupation and job
setting information included in their confidential morbidity reports. Enhanced efforts by the
county and state health departments to ensure completeness of reporting, especially of the
occupation and job information, are needed to improve occupational coccidioidomycosis
surveillance and help identify future clusters in the prisons.
Our evaluation has several additional limitations. First, our analysis of the confirmed
coccidioidomycosis cases among employees was limited to the information in the
confidential morbidity report. This report did not contain information on what type of clinical
illness, including disseminated disease, these case employees had. Therefore, we could not
determine the severity of the illness for each case. We also did not have information on what
personal risk factors these case employees had. Because employees sought medical care
from several different health care providers and clinics, we did not obtain all of their medical
records. Approximately 60% of these reports had missing race and ethnicity information.
Completeness of reporting race and ethnicity information to the county and state health
department will help to better characterize the epidemiology of coccidioidomycosis.
Second, we did not calculate 1-year crude incidence rates of coccidioidomycosis among
employees due to the small number of cases each year and the difficulty in distinguishing
random fluctuation from true changes in the underlying risk of disease inherent to rates based
on small numbers. Therefore, we were limited in identifying annual trends.
Third, we were unable to obtain detailed information about the coccicioidomycosis-related
OSHA Log reports. Thus, we are unable to explain the discrepancy between the confirmed
cases reported to CDPH and the OSHA Log reports. Because the agency does not require
physician and laboratory documentation for the OSHA Log reports, it is possible that some of
the cases were not actually confirmed cases according to the CSTE definition.
Finally, we interviewed only a small subset of the more than 1,300 employees at each prison.
Thus, the self-reported health characteristics and work practices may not be generalizable to
the entire employee population.

Conclusions
Prisons A and B are located in hyperendemic areas for coccidioidomycosis, and prison
employees are exposed to Coccidioides both at work and outside of work. We identified 103
confirmed cases of coccidioidomycosis among employees at the two prisons over a 4½-year
period. Measures such as wetting soil before it is disturbed, maintaining grass on exercise
yards, stabilizing soil, paving roads, improving building ventilation, and changing work
practices (such as reducing time spent outdoors) would be expected to reduce dust exposures to
varying degrees. However, none of these measures will eliminate exposure to Coccidioides, and
their relative effectiveness in reducing occupational coccidioidomycosis is unknown.
Page 20

Health Hazard Evaluation Report 2013-0113-3198

Recommendations
On the basis of our findings, we recommend the actions listed below to create a more
healthful workplace. We encourage the state correctional and rehabilitation agency and the
state correctional health care services agency to use a labor-management health and safety
committee or working group to discuss the recommendations in this report and develop an
action plan. Those involved in the work can best set priorities and assess the feasibility of
our recommendations for the specific situation at the two prisons. Our recommendations are
based on the hierarchy of controls approach. This approach groups actions by their likely
effectiveness in reducing or removing hazards. Additional recommendations can be found in
CDPH’s fact sheet “Preventing Work-Related Coccidiodomycosis (Valley Fever)” at http://
www.cdph.ca.gov/programs/hesis/documents/CocciFact.pdf.

Engineering Controls
Engineering controls reduce employees’ exposures by removing the hazard from the process or by
placing a barrier between the hazard and the employee. Engineering controls protect employees
effectively without placing primary responsibility of implementation on the employee.
As stated in our discussion section, wide-scale measures to reduce airborne dispersal of
Coccidioides such as watering the soil during construction projects, paving roads, planting
grass or other vegetation, and stabilizing the soil could reduce employee exposure to soil or
dust. However, little to no data exists that demonstrate the effectiveness of these measures
[Brown et al. 2013]. Although these dust reduction measures may lower the risk for localized
airborne dispersion of Coccidioides, they neither eradicate the organism from the soil nor
prevent exposure to dust from areas outside of the prison grounds. Nevertheless, reducing
dust is a reasonable risk-based strategy to try to reduce occupational coccidioidomycosis.
1.	 Consider ongoing efforts to evaluate the effectiveness of environmental mitigation
projects, such as soil stabilization, paving roads, and planting grass and other
vegetation in reducing occupational coccidioidomycosis. Analyzing inmate and
employee cases of coccidioidomycosis before and after an environmental mitigation
project may be one method but may not be an accurate measure of the project’s
effectiveness considering the natural presence of Coccidioides and its inherent
variability due to climate changes and other factors (such as construction or farming
activities occurring near but outside the prison complexes).
2.	 Include soil-wetting procedures in the excavation safety plan.
3.	 Keep doors and windows in the office buildings, clinics, and inmate housing units
closed except when entering or exiting.
4.	 Install door sweeps and seal gaps around doors and windows.
5.	 Develop a new inspection and replacement schedule following installation of the
higher-efficiency air filters.

Health Hazard Evaluation Report 2013-0113-3198

Page 21

6.	 Consult with a ventilation engineer to examine the air handling units in building 410 at
prison B. Consider expanding this ventilation assessment to the remaining buildings at
both prisons.
7.	 Reduce outdoor dust exposures to employees in the old clinic building at prison B
when they dispense inmate medication. Employee exposures could be reduced by
maintaining positive pressure in the dispensing room relative to the outdoors, or
ending the need to dispense inmate medication through an open window.

Administrative Controls
Administrative controls are management-dictated work practices and policies to reduce or
prevent exposures to workplace hazards. The effectiveness of administrative changes in work
practices for controlling workplace hazards is dependent on management commitment and
employee acceptance. Regular monitoring and reinforcement are necessary to ensure that
control policies and procedures are not circumvented in the name of convenience.
1.	 Provide education and training during working hours to all prison A and B
employees on hire and annually thereafter on the symptoms and transmission of
coccidioidomycosis, the risk factors for disseminated disease, and ways to minimize
exposure both at work and outside of work. Training should be tailored to education
level and job category. Additional information on coccidioidomycosis can be found at
the following websites:
a.	 CDC website at http://www.cdc.gov/fungal/coccidioidomycosis/
b. CDPH website at http://www.cdph.ca.gov/healthinfo/discond/Pages/
Coccidioidomycosis.aspx
2.	 Encourage state correctional and rehabilitation agency employees to promptly report
suspected symptoms of possible coccidioidomycosis to a supervisor. They should
receive prompt medical care.
3.	 Review the OSHA Logs yearly for reports of coccidioidomycosis infections among
employees to assess trends over time and across job title groups.
4.	 Avoid driving vehicles on unpaved roads.
5.	 Close the prison yards and advise inmates and employees to stay indoors during dust
storms and unusually windy or dusty days.
6.	 Consider hardship transfer requests from employees who have medical risk factors for
disseminated coccidioidomycosis such as an immunocompromising condition and who
wish to work in a geographic area with a lower incidence of coccidioidomycosis.
7.	 Consider the use of the coccidioidal spherulin skin test on employees when it becomes
commercially available. Determination of prior Coccidioides exposure at baseline
could be valuable to each employee to evaluate his or her personal risk for disease.
This determination should not be used to terminate or reassign an employee to a
different job class or work location. Rather, employees should discuss test results
along with other personal risk factors with their personal physicians. More research
is needed on determining the sensitivity and specificity of the test, improving these
Page 22

Health Hazard Evaluation Report 2013-0113-3198

characteristics, and determining how effective it may be in decreasing the burden of
coccidioidomycosis among employees. Consideration in using this test should include
who does the testing, how the results are used, and how often testing is done on
employees.

Personal Protective Equipment
Personal protective equipment is the least effective means for controlling hazardous
exposures. Proper use of personal protective equipment requires a comprehensive program
and a high level of employee involvement and commitment. Personal protective equipment
should not be the sole method for controlling hazardous exposures. Rather, personal
protective equipment should be used until effective engineering and administrative controls
are in place. The effectiveness of respiratory protection in preventing coccidioidomycosis
has not been determined, and additional research is necessary in this area. Nevertheless, it is
reasonable to expect that use of respiratory protection may confer some benefit to employees
with high risk exposures by reducing dust exposures.
1.	 Consider the use of NIOSH-approved respirators for employees who must work
outside during unusually dusty or windy conditions or for employees with job duties
that may disturb soil such as disking, digging, excavating, and gardening. Given
that the effectiveness of respirators in preventing coccidioidomycosis has not been
evaluated, the conditions upon which respirators should be used (level of respiratory
protection, voluntary vs. required use) are unclear. However, reduction in exposure to
soil dust conferred by using respirators may provide benefits to employees. Respirator
use must be in conformance with the California OSHA respiratory protection standard
(http://www.dir.ca.gov/title8/5144.html). If required, the employees must be included
in a written respiratory protection program, and be medically evaluated, trained,
and fit-tested. If respirator use is voluntary, employees do not need to be included in
the respiratory protection program but must be provided with Appendix D from the
California OSHA respiratory protection standard (http://www.dir.ca.gov/title8/5144d.
html). Because these prisons are located in areas that have very high daytime
temperatures, it is important to consider the additional heat stress effects that may
occur with respirator usage. Additional information on the symptoms and treatments
for heat related illnesses and recommendations to reduce risk can be found at http://
www.cdc.gov/niosh/topics/heatstress/.
2.	 If the use of respiratory protection is considered, consult the following documents
in selecting respiratory protection against Coccidioides, based on job tasks and
environmental conditions:
a. “Histoplasmosis—Protecting Workers at Risk,” [http://www.cdc.gov/niosh/
docs/2005-109/pdfs/2005-109.pdf]
b. “Preventing Work-Related Coccidiodomycosis (Valley Fever),” [http://www.
cdph.ca.gov/programs/hesis/documents/CocciFact.pdf]

Health Hazard Evaluation Report 2013-0113-3198

Page 23

Appendix A: Coccidioides
Coccidioides
Coccidioides is a fungus that thrives in climates with hot summers and gentle winters,
without harsh freezes, with an annual rainfall of about 4–20 inches [Pappagianis 1988;
Laniado-Laborin 2007]. The fungus is found in soil, commonly about 2–12 inches beneath
the surface [Pappagianis 1988; Fisher et al. 2000]. The organisms can have a sporadic or
patchy distribution within a given locality. Environmental conditions, including drought,
precipitation, temperature, and wind speed, appear to have an impact on coccidioidomycois
incidence [Comrie 2005]. Previous studies have hypothesized that Coccidioides spores
(vegetative fungal cells in a resting state) are most abundant in the soil after heavy rains and
may be most effectively dispersed during dry, hot periods, such as prolonged droughts [Smith
et al. 1946; Schneider et al. 1997; Kolivras and Comrie 2003; Comrie 2005]. Thus, increased
incidence of infection often occurs after a heavy wet season followed by a prolonged dry
spell [Zender and Talamantes 2005]. Incidence in California is thought to be seasonal, with
peak incidence occurring during the winter months [Kirkland and Fierer 1996].
Coccidioides spores exhibit several properties including easy dispersion, respirability, and
infectivity. Spores are thought to be 2–5 µm in diameter and are able to reach terminal
bronchioles and alveoli [Converse and Reed 1966; Schmelzer and Tabershaw 1968].

Page 24

Health Hazard Evaluation Report 2013-0113-3198

Appendix B: Coccidioidomycosis Case Definition
Coccidioidomycosis is on the list of National Notifiable Diseases, although not all states have
made it reportable [CDC 2012b]. California is among the states where coccidioidomycosis is
a reportable condition. CDPH uses the CSTE case definition for coccidioidomycosis [CDC
2012a]. A confirmed case meets the clinical case definition and is laboratory confirmed. A
clinical case is defined as an illness characterized by one or more of the following:
●● Influenza-like signs and symptoms
●● Pneumonia or other pulmonary lesion, diagnosed by chest radiograph
●● Erythema nodosum (a deep skin inflammation) or erythema multiforme rash
●● Involvement of bones, joints, or skin by dissemination
●● Meningitis
●● Involvement of viscera and lymph nodes
A confirmed case must also meet at least one of the following laboratory criteria for
diagnosis:
●● Culture, histopathologic, or molecular evidence of presence of Coccidioides, or
●● Positive serologic test for coccidioidal antibodies in serum, cerebrospinal fluid, or other
body fluids by:
○○ Detection of coccidioidal immunoglobulin M by immunodiffusion, enzyme
immunoassay, latex agglutination, or tube precipitin, or
○○ Detection of coccidioidal immunoglobulin G by immunodiffusion, enzyme
immunoassay, or complement fixation, or
○○ Coccidioidal skin-test conversion from negative to positive after onset of clinical
signs and symptoms
Coccidioidomycosis became laboratory reportable in California in 2010. Since 2008, the
laboratory component of the CSTE definition has included cases with a single positive
serologic test. Fresno County, in which prison A is located, and Kings County, in which
prison B is located, use the CSTE definition.

Health Hazard Evaluation Report 2013-0113-3198

Page 25

Airflow (cfm)

Appendix C: Figures

Airflow (cfm)

Figure C1. Airflow in cubic feet per minute (cfm) from air handler B to first floor inmate dorms in building 410 at prison B.

Figure C2. Airflow in cubic feet per minute (cfm) from air handler B to second floor inmate dorms in building 410 at prison B.

Page 26

Health Hazard Evaluation Report 2013-0113-3198

References
Ampel NM [2003]. Measurement of cellular immunity in human coccidioidomycosis.
Mycopathologia 156(4):247–262.
ANSI/ASHRAE [2010a]. Thermal environmental conditions for human occupancy. American
National Standards Institute/ASHRAE standard 55-2010. Atlanta, GA: American Society for
Heating, Refrigerating, and Air-Conditioning Engineers, Inc.
ANSI/ASHRAE [2010b]. Ventilation for acceptable indoor air quality. American National
Standards Institute/ASHRAE standard 62.1-2010. Atlanta, GA: American Society of Heating,
Refrigerating, and Air-Conditioning Engineers, Inc.
Brown J, Benedict K, Park BJ, Thompson GR 3rd [2013]. Coccidioidomycosis:
epidemiology. Clin Epidemiol 5:185–197.
California Code of Regulations (CCR). Title 8, section 5199. Sacramento, CA: Office of
Administrative Law.
California Correctional Health Care Services (CCHCS) [2012]. Public health and quality
management units. Coccidioidomycosis in California’s adult prisons 2006–2010. California
Correctional Health Care Services.
California Department of Corrections & Rehabilitation (CDCR) [2013]. Monthly report
of population as of midnight May 31, 2013. [http://www.cdcr.ca.gov/Reports_Research/
Offender_Information_Services_Branch/Monthly/TPOP1A/TPOP1Ad1305.pdf]. Date
accessed: January 2014.
Centers for Disease Control and Prevention (CDC) [2012a]. Coccidioidomycosis (valley
fever) (Coccidioides spp.). 2011 Case Definition. [http://wwwn.cdc.gov/NNDSS/script/
casedef.aspx?CondYrID=643&DatePub=1/1/2011%2012:00:00%20AM]. Date accessed:
January 2014.
Centers for Disease Control and Prevention (CDC) [2012b]. Nationally notifiable infectious
conditions, 2012. Available at: http://www.cdc.gov/nndss/document/2012_case%20
definitions.pdf. Date accessed: January 2014.
Centers for Disease Control and Prevention (CDC) [2013a]. Coccidioidomycosis. [http://
www.cdc.gov/fungal/coccidioidomycosis/]. Date accessed: January 2014.
Centers for Disease Control and Prevention (CDC) [2013b]. Increase in reported
coccidioidomycosis —United States, 1998–2011. MMWR 62(12):217–221.
Centers for Disease Control and Prevention (CDC) [2014]. CDC health information for
international travel 2014. New York: Oxford University Press.
Health Hazard Evaluation Report 2013-0113-3198

Page 27

CFR. Code of Federal Regulations. Washington, DC: U.S. Government Printing Office,
Office of the Federal Register.
Chiller TM, Galgiani JN, Stevens DA [2003]. Coccioidomycosis. Infect Dis Clin N Am
17(1):41–57.
Comrie AC [2005]. Climate factors influencing coccidioidomycosis seasonality and
outbreaks. Environ Health Perspect 113(6):688–692.
Converse JL, Reed RE [1966]. Experimental epidemiology of coccidioidomycosis. Bacteriol
Rev 30(3):678–695.
Das R, McNary J, Fitzsimmons K, Dobraca D, Cummings K, Mohle-Boetani J, Wheeler
C, McDowell A, Iossifova Y, Bailey R, Kreiss K, Materna B [2012]. Occupational
coccidioidomycosis in California: outbreak investigation, respirator recommendations, and
surveillance findings. J Occup Environ Med 54(5):564–571.
Fisher F, Bultman MW, Pappagianis D [2000]. Operational guidelines for geological
fieldwork in areas endemic for coccidioidomycosis (valley fever). U.S. Geological Survey
Open-File Report; U.S. Department of the Interior: Washington, DC, pp. 1–6.
Galgiani JN [1993]. Coccidioidomycosis. West J Med 159(4):153–171.
Galgiani JN, Ampel NM, Blair JE, Catanzaro A, Johnson RH, Stevens DA, Williams PL
[2005]. Coccidioidomycosis. Clin Infect Dis 41(9):1217−1223.
Kirkland TN, Fierer J [1996]. Coccidioidomycosis: a reemerging infectious disease. Emerg
Infect Dis 2(3):192–199.
Kolivras K, Comrie A [2003]. Modeling valley fever (coccidioidomycosis) incidence on the
basis of climate conditions. Int J Biometeorol 47(2):87–101.
Laniado-Laborin R [2007]. Expanding understanding of epidemiology of coccidioidomycosis
in the Western hemisphere. Ann N Y Acad Sci 1111:19–34.
Mohle-Boetani J (Janet.Mohle-Boetani@cdcr.ca.gov) [2013]. Private e-mail message to
Marie de Perio (mdeperio@cdc.gov). October 15, 2013.
Nguyen C, Barker BM, Hoover S, Nix DE, Ampel NM, Frelinger JA, Orbach MJ, Galgiani
JN [2013]. Recent advances in our understanding of the environmental, epidemiological,
immunological, and clinical dimensions of coccidioidomycosis. Clin Microbiol Rev
26(3):505–525.
Pappagianis D [1988]. Epidemiology of coccidioidomycosis. Curr Top Med Mycol 2:199–238.

Page 28

Health Hazard Evaluation Report 2013-0113-3198

Pappagianis D [2007]. Coccidioidomycosis in California state correctional institutions.
Coccidioidomycosis Serology Laboratory Ann NY Acad Sci 1111:103–111.
Schmelzer LL, Tabershaw IR [1968]. Exposure factors in occupational coccidioidomycosis.
Am J Public Health Nations Health 58(1):107–113.
Schneider E, Hajjeh RA, Spiegel RA, Jibson RW, Harp EL, Marshall GA, Gunn RA, McNeil
MM, Pinner RW, Baron RC, Burger RC, Hutwagner LC, Crump C, Kaufman L, Reef SE,
Feldman GM, Pappagianis D, Werner SB [1997]. A coccidioidomycosis outbreak following
the Northridge, California, earthquake. JAMA 277(11):904–908.
Smith CE, Beard RR, Rosenberger HG, Whiting EG [1946]. Effect of season and dust control
on coccidioidomycosis. JAMA 132(14):833–838.
Tabnak F (Farzaneh.Tabnak@cdph.ca.gov) [2013]. Private e-mail message to Marie de Perio
(mdeperio@cdc.gov). October 4, 2013.
Tsang CA, Anderson SM, Imholte SB, Erhart LM, Chen S, Park BJ, Christ C, Komatsu KK,
Chiller T, Sunenshine RH [2010]. Enhanced surveillance of coccidioidomycosis, Arizona,
USA, 2007–2008. Emerg Infect Dis 16(11):1738–1744.
Zender CS, Talamantes J [2005]. Climate controls on valley fever incidence in Kern County,
California. Int J Biometeorol 50(3):174–182.

Health Hazard Evaluation Report 2013-0113-3198

Page 29

Keywords: North American Industry Classification System 922140 (Correctional Institutions), Coccidioidomycosis, Coccidioides, valley fever, prison, correctional facility, infectious diseases, ventilation, fungal disease.

Page 30

Health Hazard Evaluation Report 2013-0113-3198

The Health Hazard Evaluation Program investigates possible health hazards in the workplace under the
authority of the Occupational Safety and Health Act of 1970 (29 U.S.C. § 669(a)(6)). The Health Hazard
Evaluation Program also provides, upon request, technical assistance to federal, state, and local agencies
to investigate occupational health hazards and to prevent occupational disease or injury. Regulations
guiding the Program can be found in Title 42, Code of Federal Regulations, Part 85; Requests for Health
Hazard Evaluations (42 CFR Part 85).

Disclaimer
The recommendations in this report are made on the basis of the findings at the workplace
evaluated and may not be applicable to other workplaces.
Mention of any company or product in this report does not constitute endorsement by the National
Institute for Occupational Safety and Health (NIOSH).
Citations to Web sites external to NIOSH do not constitute NIOSH endorsement of the sponsoring
organizations or their programs or products. NIOSH is not responsible for the content of these Web
sites. All Web addresses referenced in this document were accessible as of the publication date.

Acknowledgments
Desktop Publishers: Mary Winfree and Greg Hartle
Editor: Ellen Galloway
Industrial Hygiene Field Assistance: R. Todd Niemeier; Jennifer McNary, California Department of
Public Health
Logistics: Donnie Booher and Karl Feldmann
Medical Field Assistance: Kimberly Brinker, CDC; Jason Wilken, California Department of Public
Health
Surveillance and Statistical Support: Lynne Pinkerton; Lauren Lee, Alyssa Nguyen, and Farzaneh
Tabnak, California Department of Public Health; Michael Maclean and Sharon Soong,
Kings County Public Health Department; Faisal Aranki and Robert Oldham, Fresno County
Department of Public Health
Subject Matter Consultation: Lauren Lee, California Department of Public Health; Benjamin Park,
Anne Purfield, CDC

Availability of Report
Copies of this report have been sent to the employer, employees, and union at the call center. The state and
local health department and the Occupational Safety and Health Administration Regional Office have also
received a copy. This report is not copyrighted and may be freely reproduced.
This report is available at http://www.cdc.gov/niosh/hhe/reports/pdfs/2013-0113-3198.pdf.

Recommended citation for this report:

NIOSH [2014]. Health hazard evaluation report: evaluation of Coccidioides exposures
and coccidioidomycosis infections among prison employees. By de Perio MA, Burr GA.
Cincinnati, OH: U.S. Department of Health and Human Services, Centers for Disease Control
and Prevention, National Institute for Occupational Safety and Health, NIOSH Report No.
2013-0113-3198.

Health Hazard Evaluation Report 2013-0113-3198

Page 31

Delivering on the Nation’s promise:
Safety and health at work for all people through research and prevention

To receive NIOSH documents or more information about
occupational safety and health topics, please contact NIOSH:
Telephone: 1–800–CDC–INFO (1–800–232–4636)
TTY: 1–888–232–6348
CDC INFO: www.cdc.gov/info
or visit the NIOSH Web site at www.cdc.gov/niosh
For a monthly update on news at NIOSH, subscribe to NIOSH
eNews by visiting www.cdc.gov/niosh/eNews.





Prisoner Education Guide side
PLN Subscribe Now Ad 450x450
The Habeas Citebook: Prosecutorial Misconduct Side
