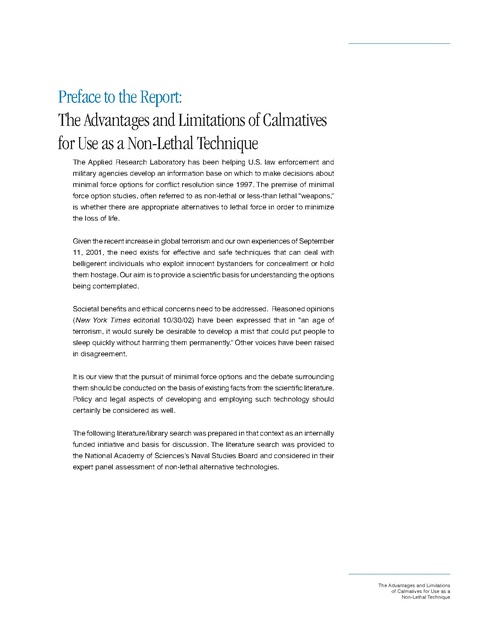

Preface to the Report:
The Advantages and Limitations of Calmatives
for Use as a Non-Lethal Technique
The Applied Research Laboratory has been helping U.S. law enforcement and
military agencies develop an information base on which to make decisions about
minimal force options for conflict resolution since 1997. The premise of minimal
force option studies, often referred to as non-lethal or less-than lethal “weapons,”
is whether there are appropriate alternatives to lethal force in order to minimize
the loss of life.
Given the recent increase in global terrorism and our own experiences of September
11, 2001, the need exists for effective and safe techniques that can deal with
belligerent individuals who exploit innocent bystanders for concealment or hold
them hostage. Our aim is to provide a scientific basis for understanding the options
being contemplated.
Societal benefits and ethical concerns need to be addressed. Reasoned opinions
(New York Times editorial 10/30/02) have been expressed that in “an age of
terrorism, it would surely be desirable to develop a mist that could put people to
sleep quickly without harming them permanently.” Other voices have been raised
in disagreement.
It is our view that the pursuit of minimal force options and the debate surrounding
them should be conducted on the basis of existing facts from the scientific literature.
Policy and legal aspects of developing and employing such technology should
certainly be considered as well.
The following literature/library search was prepared in that context as an internally
funded initiative and basis for discussion. The literature search was provided to
the National Academy of Sciences’s Naval Studies Board and considered in their
expert panel assessment of non-lethal alternative technologies.

The Advantages and Limitations
of Calmatives for Use as a
Non-Lethal Technique
1

College of Medicine
Applied Research Laboratory
The Pennsylvania State University

The Advantages
and Limitations of
Calmatives for Use
as a Non-Lethal
Technique
Dr. Joan M. Lakoski
Dr. W. Bosseau Murray
Dr. John M. Kenny
October 3, 2000

Contents
EXECUTIVE SUMMARY ..................................................................................... 2
INTRODUCTION ................................................................................................. 5
The Research Objective ...................................................................................... 5
The Subject of Review ......................................................................................... 5
Contribution of the Report on Calmatives ........................................................... 6
Important Observations from Literature Search on Calmatives ......................... 6
CALMATIVES – ADVANTAGES AND LIMITATIONS ........................................... 7
What is a Calmative? .......................................................................................... 7
Pharmacological Effects of a Calmative ............................................................. 7
Preclinical and Clinical Information on Calmatives ............................................. 8
An Ideal Non-Lethal Calmative ........................................................................... 9
Required Use of Medical Attention with States of Unconsciousness ............... 10
Specific Advantages of Calmatives Over Other Non-Lethal Techniques .......... 10
LITERATURE SURVEY – METHODOLOGY .................................................... 12
The Search Process .......................................................................................... 12
Profile of the Calmative Database .................................................................... 12
SELECTED CALMATIVES – RESULTS ............................................................ 15
Rationale for Topics Selected ............................................................................ 15
Benzodiazepines ............................................................................................... 16
Alpha2 Adrenergic Receptor Agonists .............................................................. 20
Dopamine D3 Receptor Agonists ...................................................................... 21
Selective Serotonin Reuptake Inhibitors ........................................................... 26
Serotonin 5-HT1A Receptor Agonists ................................................................ 28
Opioid Receptors and Mu Agonists .................................................................. 32
Neurolept Anesthetics ....................................................................................... 36
Neurolept Anesthetic Combinations .................................................................. 38
Corticotropin-releasing Factor Receptor Antagonists ....................................... 39
Cholecystokinin B Receptor Antagonists .......................................................... 42
RECOMMENDATIONS ...................................................................................... 46
Continuing Improvements in Drug Delivery ...................................................... 46
New Improvements with Combinations of Drugs .............................................. 47
Developing Partnerships with the Pharmaceutical Industry ............................. 48
Closing Comments ............................................................................................ 48

The Advantages and Limitations
of Calmatives for Use as a
Non-Lethal Technique
1

Executive Summary
The purpose of this study was to assess the potential use of calmatives as nonlethal techniques. This research included 1) defining the advantages and limitations
of pharmaceutical agents as calmatives with potential use as non-lethal techniques,
2) providing a comprehensive survey of the medical literature identifying
pharmaceutical agents that produce a calm state and developing this information
into a database of the relevant literature on calmatives, 3) providing an in-depth
review of selected calmatives identified by the literature search with high potential
for further consideration as a non-lethal technique, and 4) to identify and provide
recommendations on new areas in pharmaceutical drug development that may

Sidebar text highlights
salient points throughout
the report.

uniquely meet the requirements of calmatives as non-lethal techniques.
There may be a need for development of non-lethal techniques with a high degree
of specificity, selectivity, safety and reversibility that would avoid production of a
lasting impairment to the subject(s) or individual(s) activating the technique.
Pharmaceutical agents, or calmatives, with a profile of producing a calm-like
behavioral state were considered highly appropriate for consideration in the design,
enhancement, and implementation of non-lethal techniques. While ethical issues
are involved with the use of calmatives in this context, consideration of these
issues was beyond the scope of this project. The Researchers concentrated on
the task of defining the ideal characteristics of a non-lethal calmative technique,
conducting extensive literature searches and providing an in-depth analysis of
this material. In addition, the Researchers have provided recommendations for
the development and use of calmatives and other pharmaceutical agents, including
convulsants, as non-lethal techniques.
Pharmaceutical agents considered under the topic of “calmatives” include
compounds known to depress or inhibit the function of the central nervous system.
Several major classes of pharmacological compounds under this category include
sedative-hypnotic agents, anesthetic agents, skeletal muscle relaxants, opioid
analgesics, anxiolytics, antipsychotics, antidepressants and selected drugs of
abuse. Drugs which depress the nervous system have a range of effects that are
dependent on the dose and duration of drug administered; these physiological
and behavioral effects range from amelioration of anxiety, mild sedation, hypnotic
effects to coma and death. Pharmaceutical compounds recommended for use as
non-lethal calmatives will typically not be administered to produce deep sedation
or hypnosis; rather, calmatives will be used to relieve anxiety and produce mild
sedation. Moreover, the compounds featured for in-depth discussion in this report,
have unique characteristics that offer specific advantages in a non-lethal warfare setting.

The Advantages and Limitations
of Calmatives for Use as a
Non-Lethal Technique
2

This report highlights the pharmacological effects of a calmative, including a
discussion of pharmacokinetic and pharmacodynamic principles of drug action in
the central nervous system. The pharmacological effects include consideration of
a calmative’s route(s) of administration, rate of absorption and distribution,
biotransformation and excretion profiles, mechanism of actions, as well as
consideration of known side effects. The importance of data on calmatives obtained
from both preclinical and clinical research was considered to be vitally needed
information in the assessment of a calmative agent. Additional consideration was
also given to research with calmatives conducted in patient populations with a
range of disruptive behaviors, ranging from treatment of withdrawal from alcohol,
alleviation of debilitating anxiety concomitant with social phobia, therapeutic
treatment of violent parolees, as well as others to provide information relevant to
the application of a calmative in an agitated population, riot and/or hostage situation
requiring deployment of a non-lethal technique.
The Researchers identified the characteristics of an “ideal” calmative as a nonlethal technique to include:
■

easy administration

■

adaptable for administration via topical, subcutaneous, intramuscular, or

This report highlights the
pharmacological effects
of a calmative, including
a discussion of
pharmacokinetic and
pharmacodynamic
principles of drug action in
the central nervous system.

oral routes
■

rapid in onset

■

most likely of short or limited duration

■

production of approximately the same magnitude of calm (ranging from a
less agitated, groggy, sleepy-like state to a stunned state of consciousness)
in all individuals of similar body mass index and age range

■

the effects should be reversible by a profile of rapid turnover and/or the
availability of a selective antagonist to serve as an antidote

■

the compound should be safely administered by an individual and free of
prolonged toxicity to the individual(s) receiving the agent

■

only be administered on a temporary basis

■

produce side effects, if any, of short duration.

The Researchers noted that in identifying an optimum calmative for use as a nonlethal technique, the choice of agent for application in a field setting would depend
upon the situation of the crisis requiring intervention. In this regard, wide ranges of
potential agents were considered and it was noted that a series of calmatives with
different mechanisms of action, duration of effects and depths of “calm” might be appropriate
for development. It was noted that drugs can be tailored to be highly selective and
specific for known receptor (protein) targets in the nervous system with unique profiles of
biological effects on consciousness, motor activity and psychiatric impact.
An extensive review of the medical research literature and several commercial
sources of current pharmaceutical information were searched on topics carefully
selected for their relevance to calmatives. The CALMATIVE database generated
includes over 7,000 references obtained in conducting this research. These results
demonstrated that a large body of highly relevant information is available on
calmative agents.
The Advantages and Limitations
of Calmatives for Use as a
Non-Lethal Technique
3

Several classes of compounds were identified from the CALMATIVE database as
having high potential for use as a non-lethal calmative agent and include:
■

benzodiazepines

■

alpha2-adrenoreceptor agonists

■

dopamine D3 receptor agonists

■

serotonin selective reuptake inhibitors

■

serotonin 5-HT1A receptor agonists

■

opioid receptors and mu agonists

■

neurolept anesthetics

■

corticotrophin-releasing factor receptor antagonists

■

cholecystokinin B receptor antagonists.

The discussion for each category of agent includes identification of specific

The Researchers identified
several drug classes for
immediate consideration as
a non-lethal technique.

compounds (typically receptor agonists and antagonists) as well as review of the
clinical effects and the mechanism of action. In addition, each class of compounds
and specific drugs were discussed in light of their proposed contribution as a nonlethal technique. The Researchers identified several drug classes (e.g.
benzodiazepines, alpha 2-adrenoreceptor agonists) and individual drugs
(diazepam, dexmedetomidine) found appropriate for immediate consideration as
a non-lethal technique. Equally important, the Researchers identified many
promising new developments that deserve further consideration with high potential
as prototypical calmatives with availability in the near future.
It should be noted that the Researchers did not consider that a particular drug
does not currently have a method of administration appropriate for immediate use
as a non-lethal technique sufficient to disqualify a compound from further
consideration as a non-lethal calmative agent, as the area of drug delivery continues
to be a rapidly developing field. The Researchers has directed attention to several
promising breakthroughs in improving drug delivery of macromolecular compounds
and recommends this issue for further discussion.

The Advantages and Limitations
of Calmatives for Use as a
Non-Lethal Technique
4

Introduction
The Research Objective
The research objective for this project includes the accomplishment of the following:
■

Define the advantages and limitations of pharmaceutical compounds as
calmatives with potential use in non-lethal techniques.

■

…“calmatives” have
undergone a remarkably
rapid phase of growth.

Provide a comprehensive survey of the medical literature utilizing
pharmaceutical agents to produce a calm state with potential for use as a
non-lethal technique. This information will provide a current database of
the relevant literature on calmatives.

■

Provide an in-depth review of selected calmatives identified by the literature
search with high potential for further consideration as a non-lethal technique.

■

Identify and recommend promising new areas in pharmaceutical drug
development that are poised to uniquely meet the requirements of
calmatives as non-lethal techniques.

The Subject of Review
Calmatives have potential for use in non-lethal techniques. Currently, the majority
of non-lethal techniques involve the use of physical restraint, induction of acute
physical pain, or other immobilization strategy. Chemical irritants, which include
pepper spray or tear gas, serve to illustrate another series of approaches currently
used in situations of crowd control. However, to date, the vast array of
pharmaceutical compounds that produce a calm, non-agitated behavioral state,
may have potential utility as non-lethal techniques, either alone or in combination
with established approaches described above.
Since the mid 1960s, the availability of these pharmaceutical agents, herein termed
“calmatives,” have undergone a remarkably rapid phase of growth. Indeed, the
premier status of the US pharmaceutical industry in the world markets, combined
with the exponential developments in the fields of pharmacology, neuroscience,
anesthesia, and biotechnology fields, among others, has brought forth a diverse
array of compounds that produce sedation and/or a calm state as either a primary
or secondary effect. The challenge of assessing the potential use of calmatives as
non-lethal techniques requires an initial screening of a broad array of potential
candidates, followed by an in-depth assessment of compounds with features
uniquely suited towards use as a non-lethal technique. The approach taken for
this report on calmatives as non-lethal techniques was to a) define the
characteristics of an “ideal” non-lethal calmative, b) provide a broad-based yet
targeted review of medical based literature and commercial databases containing
calmative properties with pharmaceutical agents to create a database resource,
and c) conduct in-depth literature reviews of drug classes and prototype compounds
The Advantages and Limitations
of Calmatives for Use as a
Non-Lethal Technique
5

which may best meet the profile of a non-lethal calmative technique. In addition,
this report highlights several new areas in pharmaceutical drug development with
high potential for impact on development of non-lethal techniques.

Contribution of the Report on Calmatives
There is a need for non-lethal techniques with a high degree of specificity, selectivity,
safety, and reversibility to avoid producing a lasting impairment to the subject(s)
or individual(s) activating the technique. Consideration of the use of calmatives
as non-lethal techniques is both timely and warranted.
There are numerous pharmaceutical agents with a profile of producing a calm-like
behavioral state currently available in clinical practice. Moreover, wide arrays of
new compounds with unique cellular and molecular mechanisms are under
development by the pharmaceutical industry for their ability to produce calm- and

There is a need for
non-lethal techniques with
a high degree of specificity,
selectivity, safety, and
reversibility…

tranquil-like states of behavior. Therefore, this report serves as an essential first
step in identification of calmative pharmaceutical agents with potential utility as
non-lethal techniques. The extensive survey of the literature conducted on
calmatives serves to emphasize that the “time is right” with respect to considering
pharmaceutical agents as appropriate new approaches to be incorporated in the
design, enhancement, and implementation of non-lethal techniques.
In considering the application of calmatives as non-lethal techniques, The
Researchers would also like to note that the use of these agents should be
considered in an ethical context. While a review of the ethical principles and
practices for use of non-lethal techniques is beyond the scope of this report, it is
important to note that there are both national and international standards of conduct
applicable to the practice of medicine and military conduct that may require
consideration in the implementation of a calmative as a non-lethal technique.

Important Observations from Literature Search
on Calmatives
Several key observations emerged during the course of conducting extensive
literature research on calmatives. First, there is an explosion of new knowledge
and developments in pharmaceuticals producing sedation and/or calm behavior
as a direct and/or side effect. This wealth of information includes rapidly emerging
developments in the fields of cellular and molecular biology, neuroscience,
psychiatry and anesthesia, among others. Second , the goals of new drug

…the goals of new drug
development efforts, namely
continued improvement in
specificity, selectivity, safety
and reversibility are the
goals for improvements in
non-lethal techniques.

development efforts, namely continued improvement in specificity, selectivity, safety
and reversibility are the goals for improvements in non-lethal techniques. The
compounds discussed that are under development by the pharmaceutical industry
were selected for these advantages. Thus, new compounds are in “the drug
development pipeline” that will have an improved ease of delivery, specific control
of duration of effect, specific sites of action and other properties that may prove
advantageous to design of innovative non-lethal techniques. Third, new classes of
pharmaceutical agents and new compounds, are poised to meet the unique
requirements of the non-lethal warfare arena. Ultimately, new compounds can be
designed to better meet the requirements of non-lethal techniques for use in specific
military and civilian situations.

The Advantages and Limitations
of Calmatives for Use as a
Non-Lethal Technique
6

Calmatives – Advantages and Limitations
Define the advantages and limitations of pharmaceutical compounds as calmatives
with potential use as non-lethal techniques.

What Is A Calmative?
A wide variety of pharmacological approaches modulate mammalian behavior,
including human, non-human primates and rodent species. Pharmacological
compounds (or agents) producing a calm or tranquil behavioral state upon
administration are termed “calmatives.” In most cases, the state of calm produced

…“calmatives”…include
…sedative-hypnotic agents,
anesthetic agents, skeletal
muscle relaxants, opioid
analgesics, anti-anxiety
antipsychotics,
antidepressants…

will, in part, depend on the existing behavioral state of the individual before the
pharmaceutical agent is administered (e.g. agitated, aggressively violent) and the
dose and route of drug to be administered, and the pharmacokinetic and
pharmacodynamic properties of a given compound.
Pharmaceutical agents to be considered under the topic of “calmatives” will include
compounds known to depress or inhibit the function of the central nervous system
termed (depressants). There are several major classes of pharmaceutical
compounds that fall under the category of depressants including sedative-hypnotic
agents, anesthetic agents, skeletal muscle relaxants, opioid analgesics, anti-anxiety
or anxiolytics, antipsychotics, antidepressants, and selected drugs of abuse. These
pharmaceutical agents or “drugs” produce their effects by actions targeted to
specific targets, typically receptor proteins that are located in the central nervous
system, including the brain. While each of these drug classes have diverse
mechanisms of effects on their target tissue (the nervous system), the range of
drug-induced effects are dose-dependent. Depressant drugs can produce effects
that range from anxiolytic, mild sedation, hypnotic and even coma and death as
dependent upon the dose of drug administered and its spectrum of pharmacological
effects.
Pharmaceutical compounds recommended for use as calmatives with high potential
as non-lethal techniques will typically not be administered to produce deep sedation
or hypnosis. Those recommended will relieve anxiety and mild sedation. Compounds
selected for in-depth discussion will also have features that offer specific advantages
in a non-lethal warfare setting (see following section on “An Ideal Non-Lethal Calmative”).

Pharmacological Effects of a Calmative
The pharmacological effects of a given compound are critically affected by its
pharmacokinetic profile, which include its route of administration, rate of drug
absorption and distribution, biotransformation, and excretion, as well as its
pharmacodynamic profile, which determines its mechanism of action. For example,
The Advantages and Limitations
of Calmatives for Use as a
Non-Lethal Technique
7

in order to understand the pharmacokinetic effects of a calmative agent, information
is needed on how the drug has access to the brain (e.g. is it absorbed through the
skin topically), information on variables which may enhance or inhibit the
compound’s distribution and/or metabolism (e.g. was the subject ingesting large
quantities of alcohol), as well as the ability of the drug to be removed or cleared
from the subject by excretion needs to be established. A critical factor with all
drugs, including agents which act on the central nervous system, is their ability to
enter the brain. The entry of drugs into cerebrospinal fluids and extracellular space
of the central nervous system is restricted by the an arrangement of endothelial
cells described as “the blood brain barrier.” Not only is the rate of cerebral blood
flow an important factor in allowing a compound to reach the brain tissue, but the
rate of diffusion of a drug into the central nervous system is affected by the size
and the chemical charge or polarity of the agent.
In order to establish the pharmacodynamic profile of a compound, the chemical
and physical interaction of a given drug with its target tissue must be delineated to
understand the mechanism of action at a specific anatomical site in the central
nervous system (CNS). Drug action in the CNS includes a critical role for receptors,
which are proteins that serve as binding sites for endogenous regulatory ligands,
including hormones and neurotransmitters. Receptors, and their associated effector
and signal transduction systems, act as the integrators of extracellular information.
Stimulation of a drug at it’s receptor by an agonist (termed receptor agonist)
generally transmits a signal to an individual cell that, in turn, begins a cascade of
cellular and molecular effects that alter the regulation of that cell. In turn, the
specific effect of a drug on a given receptor may be chemically blocked by a targeted
compound (termed receptor antagonist). As will be evident in the discussion of
agents identified for use as potential calmatives in a non-lethal warfare setting,
the specificity of the agent will be closely linked to actions as a receptor agonist or
antagonist. The ability to stop or terminate the effective action of a given calmative
may be linked to the administration of a specific receptor antagonist, which will, in
turn, block the actions of the pharmaceutical agent at the target region in the brain
or other central nervous system site.

Preclinical and Clinical Information on Calmatives
In order to obtain as complete information as possible on a given calmative agent
with potential as a non-lethal technique, close attention to two distinctly different
types of medical research literature was deemed essential — both preclinical and
clinical research literature. Each type of research data provides a valuable and
unique contribution to our current knowledge of calmative agents. Both preclinical
and clinical research provides important information vital toward identification of
calmatives that may be best suited for use as non-lethal techniques.
In the preclinical arena, research investigations are typically conducted in a variety
of models ranging from in vitro isolated cell cultures to recording in brain slices or
in anesthetized small animals. Often data obtained in a preclinical research setting
is obtained using bacteria or yeast cell models. In addition, receptor pharmacology
is often established in isolated membrane preparations. Each of these types of
The Advantages and Limitations
of Calmatives for Use as a
Non-Lethal Technique
8

preparations allow for the precise quantification of dose-response effects for a drug
and provide the opportunity to explore cellular and molecular mechanisms of drug
action; such experiments are simply not feasible or ethical in the intact human brain.
Results obtained from research conducted in a clinical setting provide additional
information that is vitally needed in assessment of calmative pharmaceutical agents.
First, such data is required to demonstrate that a given drug will provide the desired
behavioral effects. Moreover, while effective dose ranges can often be estimated
in a preclinical research setting, the doses and routes of drug administration must
be confirmed in a human population. Likewise, potential toxicities and side effects
that may cause harm to an individual can be identified in a clinical research setting.
An additional feature of clinical literature, with particular relevance to the
identification of pharmaceutical agents that may be effective non-lethal calmatives,

…research conducted in a
clinical setting demonstrates
that a given drug will
provide the desired
behavioral effects.

is the use of research results obtained from specific patient populations. For
example, pharmacotherapeutic approaches for the treatment of alcoholism, where
patients are often experiencing withdrawal syndromes that include anxiety, agitation,
disorientation and hallucinations, have identified serotonergic drugs and
benzodiazepines as useful candidates in reduction of these withdrawal symptoms
(see Objective 3). The application of serotonin active drugs as psychotropic agents
for the treatment of patients suffering from social phobia, an anxiety-related disorder
characterized by excessive fear in performance or interactive situations involving
intensive evaluation by others, identified the effectiveness of treatment with
buspirone and serotonin selective reuptake inhibitors (SSRIs) in these patient
populations. Other selected patient populations, including individuals with

…selected patient
populations… provide
information directly
relevant to the application
of a calmative in an
agitated population, riot
or hostage situation….

obsessive-compulsive disorders, attention deficit hyperactivity disorders, or
behavioral disturbances with dementia including disruptive behaviors and aggression,
provide information directly relevant to the application of a calmative in an agitated
population, riot or hostage situation requiring use of a non-lethal technique.

An Ideal Non-Lethal Calmative
In seeking to identify pharmaceutical agents useful as calmatives in a non-lethal
technique, several characteristics may contribute to the profile of an “ideal “ agent.
The calmative should be easy to administer and adaptable for administration via
topical, subcutaneous, intramuscular or oral route. The onset of action for this
compound should be fast (seconds to minutes) and most likely of short or of a
limited duration (minutes). A given dose of the agent should produce approximately
the same magnitude of calm (ranging from a less agitated, groggy, sleepy-like

“ideal” agent…
easy to administer…
onset should be fast…
short duration…
produce approximately the
same magnitude of calm…
should be reversible…
free of any prolonged
toxicity…

state to a stunned state of consciousness, sleep state, deep sleep or light
anesthesia) in individuals of similar body mass index and age range. The effects
of producing a calm state with this agent should be reversible either by a profile of
rapid metabolism and elimination and/or the administration of a selective antagonist
specifically designed to block the effects of the administered calmative. The
compound should be able to be safely administered by the individual utilizing the
non-lethal technique and free of any prolonged toxicity to the individual receiving
the agent; the calmative should only be administered on a temporary, typically one
time basis, and therefore produce side effects (headache, nausea, vomiting), if any, of
The Advantages and Limitations
of Calmatives for Use as a
Non-Lethal Technique
9

short duration. Note that a series of calmatives may be appropriate for consideration
with different mechanisms of action, duration of effects and different depths of “calm.”
In identifying an optimum or ideal calmative for use as a non-lethal technique, it
should be recognized that the choice of agent for application in a field setting
would depend upon the situation of the crisis requiring intervention. For example,
an individual running towards you with a gun may pose an immediate threat or
perhaps be trying to protect you; in contrast with this immediate threat are a group
of hungry refugees that are excited over the distribution of food and unwilling to
wait patiently. In these two cases the degree of “calm” required is vastly different in
magnitude and the target populations are also different. In many cases the choice
of administration route, whether application to drinking water, topical administration

calmatives…might
necessitate medical
attention…

to the skin, an aerosol spray inhalation route, or a drug-filled rubber bullet, among
others, will depend on the environment. It is also important to note that a
pharmaceutical agent or drug cannot discriminate a target; whoever comes in
contact with the agent will exper ience the intended dose-dependent
pharmacological and physiological effects. However, drugs can be tailored to be
highly selective and specific for known receptors and their biological effects on
consciousness, motor activity and psychiatric profile.
As will be discussed under Objective 4, new and improved methods for
administration of pharmacological agents are under continuing development. It
should be noted, that the fact that a particular drug does not currently have a
method of administration appropriate for immediate use as a non-lethal technique
should not disqualify this compound from present and/or future consideration as a
non-lethal calmative agent. The developments in this arena of drug application/
administration will continue to emerge in a rapid fashion.

Required Use of Medical Attention with
States of Unconsciousness
It should be recognized that all drugs, including calmatives that may cause
unconsciousness might necessitate medical attention for the following:
■

Ensure that the subjects did not “go to sleep” in positions that obstruct their
airway,

■

Check for the occasional person who may stop breathing (many medical
reasons in the unhealthy, the elderly and very young but very unlikely in fit,
healthy soldiers or other individuals who may not be the target population),

■

Avoid injuries due to the fall of “falling asleep” (bump to head on object or floor),

■

Administer an antidote which may require medical attention; and

■

Determine how long to monitor and provide medical attention as dependent
upon the route of administration and dose of the active calmative and/or
antidote/selective antagonist.

Specific Advantages of Calmatives Over
Other Non-lethal Techniques
Are there advantages to the production of a calm state in a non-lethal technique
versus the use of blunt trauma and/or compliance through pain? One area of
The Advantages and Limitations
of Calmatives for Use as a
Non-Lethal Technique
10

consideration is that blunt trauma has an incidence of organ damage, which may
include the eyes, liver, kidney, spleen, heart and brain, that may be permanent or
even death. Other methods of inflicting pain for control of an individual are
sometimes socially unacceptable. In contrast, a pharmaceutical agent may be
administered in a discrete manner to a selected individual or a drug agent may be
selected with a known duration of effect. Moreover, much like compliance produced
with blunt trauma or other restraint method, virtually all individuals will respond in
a dose-dependent manner. The limitation to the use of calmatives in a non-lethal
technique may, therefore, be relatively few.

…virtually all individuals
will respond in a dosedependent manner.

The Advantages and Limitations
of Calmatives for Use as a
Non-Lethal Technique
11

Literature Survey - Methodology
Provide a comprehensive survey of the medical literature identifying pharmaceutical
agents that produce a calm state with potential for use as a non-lethal technique.
This information will provide a database of current relevant calmative literature.

The Search Process
A comprehensive and intensive search of the published research literature was
conducted on pharmaceutical agents with potential utility as calmatives. The overall
strategy of the search process was to identify key topics (e.g. calmatives, sedation),

…the search process
utilized the most up-to-date
information currently
available on
pharmaceutical
compounds under
development.

drug classes (e.g. benzodiazepines, opioids), drugs (e.g. RB101, midazolam), and
behaviors (e.g. aggression, agitation), and then systematically search a wide variety
of biomedical research literature databases. On a weekly and sometimes daily basis,
results of searches were reviewed by the Researchers and further refined and
redirected. In addition to the Researchers, searches were conducted by two postdoctoral
level individuals with backgrounds in neuropharmacology and with assistance from a
reference librarian at Penn State University. As the volume of material is so extensive
under many of the topics, the task required constant assessment of the quality of the
reference material and relevance to the non-lethal technique requirements.
In addition, commercially available databases were searched, including DIALOG.com
and IDDB.com (Investigations Drug Development Base). These sources were carefully
selected for high quality and their access and emphasis on the newest developments
in drug development, including compounds undergoing drug discovery and Phase I, II
or III clinical investigation trials. Thus, the search process utilized the most up-to-date
information currently available on pharmaceutical compounds under development. It
should be noted that the Researchers did not have access to any proprietary information
that had not yet been published or protected by patent-related activity; such data
access would require individual disclosures and confidentiality agreements beyond
the scope of the present investigation.
Records were maintained on all searches, including key words, dates of searches,
databases searched, outcomes, and hardcopies.

Profile of the Calmative Database
All references identified in the search process are included in the database termed
CALMATIVE; this database includes over 7,800 references.
References and abstracts were placed in a Reference Manager format that is
designed for use with Windows 98/95/NT. The CALMATIVE database is included with
this report on a formatted ZIP drive and is available in printed format upon request.
The Advantages and Limitations
of Calmatives for Use as a
Non-Lethal Technique
12

In addition, to improve the ease of subsequent use of the CALMATIVE database,
a second formatted database, termed CALMTOPICS database was developed.
This database which includes identification of subtopics and themes identified for
references included in the master CALMATIVE database. The topics and themes
included in CALMTOPICS are listed in Table 1.
This selected database provides a comprehensive survey of the current medical
literature utilizing pharmaceutical agents to produce a calm state with potential for
use as a non-lethal technique (30 April 2000).
TABLE 1.

TOPICS AND THEMES OF THE CALMTOPIC DATABASE.

1. Calmatives

2. Aggression

3. Antipsychotics and Aggression

4. Treatment of Agitation

5. Treatment of Panic

6. Animal Model of Panic

7. Lactate Induced Panic

8. Alnespirone

9. Lesopitron

10. Benzodiazepine

11. Benzodiazepine – Mechanism

12. Anxiety in Mice

13. Anxiety in Rats

14. Anxiety in Mammals

15. Anxiety in Humans

16. Animal Screening

17. Disinhibit

18. Zopiclone

19. Zolpidem

20. Zaleplon

21. Flumazenil

22. Resiniferatoxin

23. Divalproex

24. GABAA Receptor & Deficient

25. GABAA Receptor & Mutant

26. GABAA Receptor & Tansgenic

27. GABAA Receptor & Anxiety

28. GABAA Receptor & Sedation

29. Alprazolam

30. Nefazodone (Panic & Nefax – Venlafax – Fluvox)

31. Valproate & Panic Disorder Aggression

32. Venlafaxine, Fluvoxamine, Nefazodone, Mirtazapine & Aggression

33. PTSD – Drug Therapy

34. Lorazepam

35. Midazolam (Versed)

36. Flunitrazepam

37. Etizolam

38. Short-acting Benzodiazepines

39. Alpha2 Agonist & Agitation

40. Alpha2 Agonist & Panic

41. Alpha2 Agonist & Postoperative

42. Alpha2 Agonist & Sedation

43. Clonidine & Sedation

44. Clonidine & Agitation

45. Clonidine & Pain

46. Clonidine & Postoperative

47. Dexmedetomidine

48. Dopamine Receptor Agonist & Schizophrenia

49. Dopamine Receptor (DAR) Agonist & Aggression

50. Dopamine Receptor (DAR) Antagonist & Aggression

51. Dopamine Receptor (DAR) Antagonist & Agitation

52. Dopamine Receptor (DAR) Antagonist & Schizophrenia

53. D3 & PCP

54. PCP Psychosis

55. PD 128907 (D3 Agonist)

56. D3 Receptor & Schizophrenia

57. D3 Receptor & Psychosis

58. D4 Receptor & PCP Psychosis

59. Phencyclidine & Dopamine

60. Phencyclidine & Mechanism

61. Oleamide

62. 5-Hydroxytryptamine Moduline

63. Sertraline Aggression

64. Buspirone & Anxiety

65. Buspirone & Aggression/Mood/Combat

66. Buspirone & Tranquilizers

67. Buspirone & Motor Activity

68. Buspirone & Impulse Control Disorder

69. Buspirone & Phobic Disorders

70. Buspirone & Alcohol Drinking

71. Buspirone & 5HT Antagonists

72. Buspirone & DA/D2 receptors

73. Carfentanil

74. Propofol (Diprivan)

75. Opioid & Impulse Control

76. Opioid & Aggression

77. Mu Agonists

78. Orphanin Fq

79. Sigma & Aggression

80. Anandamide

81. CRF Antagonists

82. CCK

83. CCK Receptors

84. CI-1015 (CCKB Antagonist)

85. CI-988

86. CR-2945 I (CCKB Antagonist)

The Advantages and Limitations
of Calmatives for Use as a
Non-Lethal Technique
13

87. Human, Hypercortisolism & Aggression

88. Human Hypercortisolism

89. Salway Cortisol

90. Neuropeptides & Anxiety

91. Prohormone Convertase/Proprotein Convertase

92. Neuropeptide Y Antagonist

93. Neuropeptide & Antagonist – BIBP3226

94. Neuropeptide Y & Agonist

95. Neuropeptides/Substance P Antagonists

96. Urocortin & Antagonist

97. Oxycotin & Agonist

98. GHB

99. Neuroleptic

100. Neuroleptanalgesia

101. Risperidone

102. Tramadol

103. Citocoline

104. MRI & Rodent

105. Nitric Oxide Synthose – Brain

106. RO 48-6791

107. Sevoflurane

108. Desflurane

109. Isoflurane

110. Butanediol

111. Gastrin Receptor

112. Author – Reinscheid, R.K.

113. Author – Koster, A.

The Advantages and Limitations
of Calmatives for Use as a
Non-Lethal Technique
14

Selected Calmatives – Results
Provide an in-depth review of selected calmatives identified by the literature search
with high potential for further consideration as a non-lethal technique.

Rationale for Topics Selected
The pharmaceutical drug classes and agents selected that are highlighted in the
following section have been chosen for an appropriate action as a calmative (Table
2). These compounds have been demonstrated, indicated and/or are being
developed to treat agitated, aggressive and/or anxiety-related behaviors and,
hence, result in a calm state. A range of drugs with distinctly different cellular and
molecular mechanisms of action with diverse biological and physiological effects
has also been included. We recognize that “an ideal calmative” may well be
dependent upon the situation in which it is ultimately deployed. Therefore, it is
important that all promising candidate calmatives and options be explored.
For each drug class and pharmaceutical agent chosen for further discussion, a
brief summary of characteristics is provided, followed by a more in-depth discussion
with selected references.
TABLE 2.

SELECTED CALMATIVES.

Drug Class

Selected Compounds

Site of Action

Benzodiazepines

diazepine (Valium)

GABA receptors

midazolam (Versed)
etizolam
flumazenil (antagonist)
Alpha2 Adrenergic Receptor Agonists

clonidine

Alpha2-adrenergic receptors

dexmedetomidine (Precedex)
fluparoxan (antagonist)
Dopamine D3 Receptor Agonists

pramipexole

D3 receptors

CI-1007
PD 128907
Selective Serotonin Reuptake

fluoxetine (Prozac)

5-HT transporter

sertraline (Zoloft)
paroxetine
WO-09500194
Serotonin 5-HT1A Receptor Agonists

buspirone (Buspar)

5-HT1A receptor

lesopitron
alnespirone
MCK-242
WAY-100,635
oleamide
Opioid Receptors and Mu Agonists

morphine

Mu reception; enzymatic

carfentanil
naloxone (antagonist)
Neurolept Anesthetics

propofol (di-iso-propylphenol)

GABA receptor
The Advantages and Limitations
of Calmatives for Use as a
Non-Lethal Technique
15

Drug Class

Selected Compounds

Site of Action

droperidol and fentanyl

DA, NE, and GABA receptors

combination (Innovar)
phencyclidines (Ketamine)

Opioid receptors

Corticotropin-Releasing Factor

CP 154,526 (antagonist)

CRF receptor

Receptor Antagonists

NBI 27914 (antagonist)
CRF-BP (binding protein)

Cholecystokinin B Receptor Antagonists CCK-4

CCKB receptor

CI-988 (antagonist)
CI-1015 (antagonist)

Benzodiazepines
SELECTED COMPOUNDS:

Benzodiazepines…
depress respiration and the
cardio-vascular system.

– diazepam (Valium)
– midazolam (Versed)
– etizolam

CH3

– flumazenil (antagonist)

O

N
CLINICAL EFFECTS:
Benzodiazepines are used as calming agents, for treatment of anxiety (anxiolytics),
amnesia, pre-operative sedation and induction of general anesthesia. A side effect
is that these agents depress respiration and the cardiovascular system.

CI

N

Benzodiazepines are used extensively on a daily basis, as oral and intravenous
agents, and fall into 3 categories:
1.

Ultra-short acting agents (midazolam) with therapeutic half-lives measured

2.

Intermediate acting (lorazepam) with half-lives of 10-18 hours, are used for

in minutes are used for sedation and anesthetic induction.
short-term relief of anxiety symptoms.
3.

Diazepam (Valium)

Long acting agents (diazepam) with elimination half-lives of 100 hours or
more are used for treatment of anxiety disorders and adjuncts in managing
seizure disorders.

Paradoxical reactions, such as anger, hostility, and mania have been reported
with presently available benzodiazepines.
Flumazenil, is available as an antidote to benzodiazepines and has been used as
an effective competitive antagonist in cases of toxicity or overdose.
MECHANISM OF ACTION:
Benzodiazepines stimulate and enhance gamma-aminobutyric acid (GABA) which
is the major inhibitory neurotransmitter in the central nervous system (brain and
spinal cord).
There are several GABA receptors (GABAA, GABAB, GABAC) which have further
sub-units and isotypes of sub-units (see full description). Different regions of the
brain have receptors of differing combinations of subtypes, thus conferring different
pharmacological properties in various areas of the central nervous system.

The Advantages and Limitations
of Calmatives for Use as a
Non-Lethal Technique
16

Due to the existence of differing GABA receptor sub-units in various brain regions,
it may be possible to design benzodiazepines that mediate sedative effects without
producing respiratory and cardiovascular depression and also lacking the
paradoxical effects of stimulation.
PROPOSED CONTRIBUTION AS A NON-LETHAL CALMATIVE TECHNIQUE:
Benzodiazepines are prototypical calmative agents with varying profiles from rapid
onset and short-acting, through intermediate acting, to very long-term effects. The
agents can be administered by a variety of routes, including oral and parenteral
(intramuscular and intravenous). The benzodiazepines have synergistic effects
with several other pharmaceutical agents with direct and indirect GABA effects
(e.g. barbituates and narcotics), leading to lower doses, and enhanced safety, for
both groups of agents.
This literature search has indicated that benzodiazepines (and all GABA receptor
agonists) have a major potential use as non-lethal technique calmatives.
DISCUSSION:
Gamma-aminobutyric acid (GABA) is the major inhibitory neurotransmitter in the
mammalian central nervous system. Several receptors, termed GABAA, GABAA,
and GABAC have been identified as endogenous targets for GABA binding. Both
GABAA and GABAC receptors exist as receptor-chloride ion channel heterooligomeric macromolecular complexes, while GABAB receptors are members of
the G-protein coupled receptor super-family.
Many pharmacologic agents with anxiolytic and sedative properties are known to
interact with GABAA receptors. This receptor is comprised of at least three different
subunits, termed alpha, beta and gamma. Several different isotypes for each of
the subunits have been identified, including six different alpha subunits, 4 beta
subunits, and three gamma subunits. The stoichiometric arrangement of these
subunits is presently unknown. However, receptors in different regions of the
brain are comprised of differing combinations of subtypes, thus conferring different
pharmacologic properties to the receptor-ion channels in various areas of the
central nervous system.
Experimental analysis has shown that GABA binds to sites on either the alpha or
beta subunits of the GABAA receptor complex. When GABA is bound to its receptor,
chloride conductance through the ion channel portion of the receptor is initiated.
As chloride ions pass through the ion channel, neuronal membrane
hyperpolarization results, making it more difficult for neurons to reach their threshold
potential for neuronal firing. Ultimately, GABA binding to GABAA receptors results
in a decreased firing rate of neurons in the central nervous system.
Sedative-hypnotic agents, such as benzodiazepines act at GABAA receptors.
Benzodiazepines do not substitute for GABA, however, they augment the effects
of GABA by binding to the gamma subunit of the receptor-ion complex.
Benzodiazepines enhance chloride conductance initiated by GABA’s interaction
The Advantages and Limitations
of Calmatives for Use as a
Non-Lethal Technique
17

with GABAA receptors by increasing the frequency of ion channel opening events.
(It is worth noting that older generation sedative-hypnotics such as drugs in the
barbiturate class also act at GABAA receptors by increasing the duration of GABAgated ion channel openings. Due to their low margin of safety, barbiturates have
been largely replaced by the safer benzodiazepine class of agents.)
Clinically, benzodiazepines have been used as calming agents for a wide variety
of therapeutic purposes including sleep induction, adjuncts to surgical anesthesia,
epilepsy, depression of polysynaptic musculoskeletal reflexes, and treatment of
anxiety states. A drawback to usage of benzodiazepines is that even at therapeutic
doses, respiratory and cardiovascular depression may occur, probably as a result
of action on medullary respiratory and vasomotor centers.
Although benzodiazepines share a common chemical structure, that of a 1,4benzodiazepine, the side-groups added to each agent confer slightly different
properties to the various compounds. These substitutions alter both the
pharmacologic properties of individual drugs, rendering some agents more
efficacious in achieving various calming states than others, as well as the
pharmacokinetic properties of the drugs. Pharmacokinetically, benzodiazepines
vary in their rates of onset of activity and their duration of action, which is influenced

…benzodiazepines have
been used as calming
agents for a wide variety of
therapeutic purposes
including sleep induction,
adjuncts to surgical
anesthesia, epilepsy,
depression of polysynaptic
musculoskeletal reflexes,
and treatment of anxiety
states.

by route of elimination and the presence or absence of active metabolites.
Chlorazepate and diazepam have a very fast onset of action that terminates rather
slowly resulting in elimination half-lives of 100 hours or more. The properties of
these agents render them well suited for managing anxiety disorders, particularly
related to acute alcohol withdrawal, and as adjuncts in management of seizure
activity.

Other agents such as alprazolam and lorazepam are relatively short

acting. The onset of activity of these agents has been termed “intermediate” and
these compounds have therapeutic half-lives of approximately 10-18 hours. These
agents are indicated for the short-term relief of anxiety symptoms. Still other
benzodiazepines are ultra-short acting. These drugs have a very rapid onset of
action, which terminates in a matter of minutes. Clinically, midazolam is an example
of an ultra-short acting benzodiazepine. Midazolam is useful for sedation and
anesthetic induction, processes which may occur in as little as two to five minutes
following intravenous injection.
Alprazolam is administered orally and used clinically to manage anxiety or panic
disorders. Although, primarily used as a calming agent, paradoxical reactions
such as severe anger, hostility, and mania have been reported with this agent.
While benzodiazepines are considered to have a wider margin of safety than
barbiturates, death is conceivable with high enough doses due to depressive effects
of these agents on medullary functions. However, there are no well-documented
fatal overdoses resulting from oral use of benzodiazepines alone; most fatalities
indicate benzodiazepines as only a component to overdose in combination with
multiple drug injections.
In contrast to alprazolam, which is administered only by the oral route of
administration, midazolam is typically given as an injection. Midazolam has found
The Advantages and Limitations
of Calmatives for Use as a
Non-Lethal Technique
18

use primarily as a preoperative sedative agent although it is also administered for
sedation, anxiolysis and amnesia prior to or during short diagnostic procedures.
Midazolam may also be used as an induction agent for general anesthesia. An
off-label use of midazolam involves treatment of epileptic seizures. Midazolam
has been associated with respiratory depression and respiratory arrest leading to
death or hypoxic encephalopathy. Although benzodiazepines have the potential to
produce respiratory depression and cardiovascular collapse in overdose situations,
their safety profiles are considerably safer than older generation sedative agents.
Furthermore, in cases of toxicity or overdose, a benzodiazepine receptor antagonist,
flumazenil, is available that can be utilized to reverse adverse effects of
benzodiazepine over-administration.
Newer, investigational short-acting benzodiazepines are currently under
investigation for potential roles as calming agents in various types of anxiety,
depressive disorders, and even schizophrenia. Etizolam, a short-acting
benzodiazepine with elimination kinetics between those of short-intermediate and
ultra-rapidly eliminated benzodiazepines (Fracasso et al., 1991), is one such agent.
Following administration of etizolam to patients suffering from panic disorders,
significant improvements were seen in the following areas: chronic anxiety, phobic
ideas, depressive symptoms and episodic anxiety (Savoldi et al., 1990). Additionally,
etizolam has also been used successfully to suppress schizophrenic auditory
hallucinations refractory to antipsychotic treatment (Benazzi et al., 1993). Another
investigational benzodiazepine is Ro 48-6791. This agent has been found to be
comparable with midazolam, with a slightly shorter duration of action (Tang et al.,
1996; Dingemanse et al. 1997). Ro 48-6791 is currently in phase II clinical trials
for evaluation as an anesthesia induction agent. Further trials are needed to more
fully evaluate the effectiveness of these compounds in mediating various calmative
states. Their clinical utility, in comparison with other benzodiazepines, remains to
be determined.
In addition to the search for new short-acting compounds, another area of
benzodiazepine research is focused on the distinct pharmacologic properties
mediated by various combinations of GABAA receptor subunits. In experimental
systems, the intrinsic activity of benzodiazepine receptor ligands has been found
to vary with different combinations of receptor subtypes (Knoflach et al., 1993).
The degree of receptor modulation appears to be influenced primarily by the type
of alpha subunit present. Several agents including bretazenil and imidazenil are
presently being evaluated for effectiveness as calming agents in various disorders
by taking advantage of their selectivity for various GABAA receptor subunit
combinations.
With GABAA receptor subunits expressed differentially in various brain regions, it
may be possible to design benzodiazepines that mediate sedative or anxiolytic
effects without causing respiratory and cardiovascular depression. Much
information remains to be garnered regarding the properties of various combinations
of GABAA receptor subtypes in the brain, both with respect to their localization
patterns within the central nervous system and their pharmacological properties.
The Advantages and Limitations
of Calmatives for Use as a
Non-Lethal Technique
19

Further experimental research in this area may aid in the design of drugs that
mediate calming properties without eliciting other adverse events.
SELECTED REFERENCES:
Benazzi F, Mazzoli M and Ressi E (1993) Auditory hallucinations suppressed by etizolam
in a patient with schizophrenia. Canadian Journal of Psychiatry 38:574-575.
Dingemanse J, van Gerven JM, Schoemaker RC, Roncari G, Oberye JJ, van
Oostenbruggen MF, Massarella J, Segala P, Zell M and Cohen AF (1997)
Integrated pharmacokinetics and pharmacodynamics of Ro 48-6791, a new
benzodiazepine, in comparison with midazolam during first administration to
healthy male subjects. British Journal of Clinical Pharmacology 44:477-486.
Francasso C, Confalonieri S, Garattini S and Caccia S (1991) Single and
multiple dose pharmacokinetics of etizolam in healthy subjects. European

Journal of Clinical Pharmacology 40:181-185.
Knoflach F, Drescher U, Scheurer L, Malherbe P, Mohler H (1993) Full and

Dexmedetomidine…
produces good sedation,
some psychomotor
impairment and moderate
analgesia without
cardiovascular compromise.

partial agonism displayed by benzodiazepine receptor ligands at
recombinant gamma-amino butyric acid A receptor subtypes. Journal of

Pharmacology and Experimental Therapeutics 266:385-391.
Savoldi F, Somerzini G and Ecari U (1990) Etizolam versus placebo in the
treatment of panic disorder with agoraphobia: A double-blind study.

Current Medical Research Opinion 12:185-190.
Tang J, Wang B, White PF, Gold M and Gold J (1996) Comparison of the
sedation and recovery profiles of Ro 48-6791, a new benzodiazepine, and
midazolam in combination with meperidine for outpatient endoscopic
procedures. Anesthetic Analagesia 89:893-898.

Alpha2 Adrenergic Receptor Agonists
Selected Compounds:
– clonidine
– dexmedetomidine (Precedex)
– fluparoxan (antagonist)
CLINICAL EFFECTS:
Alpha2 adrenoreceptor agonists cause sedation, anxiolysis and enhance the effects
(synergism) of both general anesthetic and local anesthetic agents.
Dexmedetomidine, in low doses, produces good sedation, some psychomotor
impairment and moderate analgesia without cardiovascular compromise.
MECHANISM OF ACTION:
The agents are selective agonists at the alpha2 adrenoreceptor located in the
brain and spinal cord. Clonidine (as the original drug), is five-fold less selective
than dexmedetomidine, causing transient hypotension due to stimulation of the
alpha1 adrenoreceptor in the peripheral vascular system. Therefore, clonidine
should not receive further consideration.
Dexmedetomidine acts selectively on the alpha2A adrenoreceptor by opening
inwardly-rectifying K+ channels distributed in locus coeruleus of the central nervous
The Advantages and Limitations
of Calmatives for Use as a
Non-Lethal Technique
20

system and causes an anti-nociceptive (anti-pain) effect. Dexmedetomidine was
originally developed as a sedative-analgesic for veterinary medicine. It was
released in March 2000 in the USA as an “anesthetic” for sedation in intensive
care patients as an anxiolytic agent.
Dexmedetomidine potentiates several anesthetic agents (e.g., thiopentone
induction requirement is reduced by 23%, and isoflurane requirements are reduced
by more than 90%), as well as decreases the requirements for opioids (e.g.,
pentazocine requirement for post operative pain relief is decreased by 70%).
Furthermore, dexmedetomidine significantly potentiates electro-acupuncture to
suppress cerebral evoked potential and, therefore, has potential for use with “sticky
shocker” (see below). This alpha2 adrenoreceptor agonist also attenuates the
side effects of ketamine, including cardio-stimulatory as well as delirium effects
and this interaction may be important for non-lethal technique use.
PROPOSED CONTRIBUTION AS A NON-LETHAL CALMATIVE TECHNIQUE:
Dexmedetomidine can be administered as an intravenous, intramuscular and
transdermal agent. Used in conjunction with most other sedative agents, this

Used in conjunction with
most other sedative agents,
this drug markedly (23-90%)
reduces the dose requirement
for the primary agent, often
reducing side effects leading
to increased safety of the
mixture of pharmaceutical
agents.

drug markedly (23-90%) reduces the dose requirement for the primary agent,
often reducing side effects leading to increased safety of the mixture of
pharmaceutical agents.
The interesting phenomenon of potentiating electro-acupuncture opens the
possibility that use of this agent in conjunction with existing (e.g., sticky shocker)
and proposed non-lethal techniques (electro-magnetic waves) is warranted. The
concept could be considered that exposure of a group first to the pharmacological
agent (leading to mild sedation and sleepiness), can then be added to another
directed non-lethal technique. This approach would address effects on the few
individuals where an average dose of the pharmacological agent did not have the
desired effect. This approach offers the advantage of avoiding the use of a higher
dose of pharmacological agent, which may prove to be too much for some individuals.
Fluparoxan is under development as an antidote (competitive antagonist) for alpha2
adrenoceptor agonists. The availability of a highly selective antagonist will permit
the rapid reversibility of drug-induced effects and enhance the safety profile of
alpha2 adrenoreceptor agonists as non-lethal calmative techniques.

Dopamine D3 Receptor Agonists
SELECTED COMPOUNDS:
– pramipexole
– CI-1007
– PD 128907
CLINICAL EFFECTS:
The D3 receptor agonists have been extensively investigated as calming agents –
this is their presumed mechanism of action as anti-psychotic agents. They have
yielded promising results in calming abnormal states produced by agents such as
The Advantages and Limitations
of Calmatives for Use as a
Non-Lethal Technique
21

phencyclidine (PCP). D3 receptor agonists have also been found to be useful in
blocking convulsant effects of agents such as cocaine. Multiple other uses for D3
and other dopamine receptor agonists have also been investigated (see expanded
section).
MECHANISM OF ACTION:
Dopamine is the predominant catecholamine neurotransmitter, or chemical, in the
brain that transmits messages between nerve cells. In the central nervous system,
dopamine has been implicated in the control of a variety of functions including
regulation of motivation and positive reinforcement, locomotor activity, cognition,
emotion, as well as endocrine regulation.
Four main dopaminergic pathways exist in the brain with associated behavioral
functions:
– coordination of voluntary movements (nigrostriatal pathway)
– motivational, emotional and cognitive functions (mesolimbic and

D3 agonists… calm a
psychotic subject, especially
those with emotional
behavior due to drugs such
as PCP (phencyclidine) and
cocaine, add further value
to these D3 receptor agonists.

mesocortical pathways)
– endocrine functions (tuberoinfundibular pathway)
Dopamine exerts its actions in the central nervous system by interacting with five
different receptors termed D1 through D5.
PROPOSED CONTRIBUTION AS A NON-LETHAL CALMATIVE TECHNIQUE:
The dopamine D3 receptor agonists are of great interest as a non-lethal technique
due to the calmative effects of these agents, as well as effects on motivation and
on locomotion. Furthermore, the ability of the D3 receptor agonists to calm a
psychotic subject, especially those with emotional behavior due to drugs such as
PCP (phencyclidine) and cocaine, add further value to these D3 receptor agonists.
DISCUSSION:
Dopamine is the predominant catecholamine neurotransmitter, or chemical, in the
mammalian brain that transmits messages between neurons. In the central nervous
system, dopamine has been implicated in the control of a variety of functions
including regulation of locomotor activity, cognition, emotion, positive reinforcement,
and endocrine regulation.
Four main dopaminergic pathways exist in the mammalian brain to account for
dopamine’s central activity: the nigrostriatal pathway, the mesolimbic pathway, the
mesocortical pathway, and the tuberoinfundibular pathway. The nigrostriatal
pathway originates with dopamine-producing cells in the substantia nigra pars
compacta which project to the dorsal striatum, a structure associated with the
coordination of voluntary movements. Degeneration of dopaminergic neurons within
this pathway have been implicated in Parkinson’s disease. The mesolimbic pathway
originates in the ventral tegmental area and projects to the nucleus accumbens,
olfactory tubercle, and parts of the limbic system (septum, amygdaloid complex,
and piriform cortex). Like the mesolimbic pathway, the mesocortical dopaminergic
pathway also has its origins in the ventral tegmental area but projects to the frontal,
The Advantages and Limitations
of Calmatives for Use as a
Non-Lethal Technique
22

cingulate, and entorhinal cortices. Together, the mesolimbic and mesocortical
pathways are involved in emotional, motivational and cognitive functions.

It is

believed that aberrant dopaminergic neurotransmission within the
mesocorticolimbic pathways underlies the disease of schizophrenia. The
tuberoinfundibular pathway is comprised of dopamine-producing cells in the arcuate
nucleus which release dopamine into the median eminence. Dopamine exerts an
inhibitory effect on prolactin secretion; therefore, in the tuberoinfundibular pathway,
dopamine regulates endocrine functions.
Dopamine exerts its actions in the central nervous system by interacting with five
different receptors (D1, D2, D3, D4, and D5) which arise from five distinct genes.
These receptors can be further separated into subfamilies based on pharmacology,
sequence homology, and biochemistry. D1 and D5 receptors are similar to each
other with regard to amino acid sequence, anatomical distribution, and biochemical
pathways activated following receptor stimulation. As a result of their similarities,
D1 and D5 receptors are commonly referred to as D1-like receptors.
Within the central nervous system, both D1 and D5 receptors are expressed at
high levels in the cortex, striatum, and hippocampus. Ultrastructurally, D1 receptors
are predominantly located on dendritic spines whereas, D5 receptors are
preferentially expressed on dendritic shafts. This differential distribution suggests
that although D1 and D5 receptors possess similar pharmacology they are not
functionally redundant receptors. Stimulation of D1-like dopamine receptors in
the central nervous system results primarily in activation of adenylate cyclase,
although there is also evidence to suggest a role for D1-like receptors in the
modulation of intracellular calcium levels as well.
D2, D3, and D4 receptors are also grouped together and are commonly referred
to as D2-like dopamine receptors. D2-like dopamine receptors are structurally
homologous to one another and biochemically inhibit adenylate cyclase activity.
While second messenger activity varies from cell line to cell line, D2-like receptors
are also capable of mediating changes in intracellular calcium levels, modulating
potassium levels, potentiating arachidonic acid release, and activating a sodium/
hydrogen ion exchanger. D2 receptors are predominantly expressed in the striatum,
although their expression is widespread and is also located in the nucleus
accumbens and various cortical and subcortical regions. In contrast to the
widespread localization of D2 receptors, the localization of D3 and D4 receptors
is restricted primarily to limbic regions of the brain. D3 receptors are predominantly
located in the nucleus accumbens, olfactory tubercle, islands of Calleja and lobules
9 and 10 of the cerebellum. D4 receptors are highly expressed in the frontal cortex,
amygdala, hippocampus, and hypothalamus. Additionally, splice variants of D2
and D3 dopamine receptors have also been identified. The D2 splice variant, termed
D2S, appears to function in a manner similar to its full-length counterpart; however,
the splice variants identified for D3 receptors appear to either be non-functional or
to regulate cell-surface expression of D3 receptors in a dominant negative manner.
Presently, the functional effects that co-expression of D3 receptors with D3-splice
variants have on dopaminergic neurotransmission is under investigation.
The Advantages and Limitations
of Calmatives for Use as a
Non-Lethal Technique
23

Physiologically, D3 receptors appear to play an inhibitory effect on locomotion.
D3-preferring agonists inhibit locomotor activity, while D3-preferring antagonists
stimulate locomotor activity in experimental animals. Furthermore, mice genetically
engineered to be D3 receptor-deficient are hyperactive compared to control mice. For
the most part, however, the role of D3 receptor in the physiology of the dopaminergic
system is largely unknown. Because D3 receptors are specifically expressed in limbic
and cortical regions involved in the control of cognition and emotion, they are attractive
targets for new generations of antipsychotic medications.
An association has recently been made with regard to schizophrenia and
abnormally spliced D3 receptors. Post-mortem findings have indicated that in
several brain regions, schizophrenic patients express primarily D3nf, a D3 receptor
splice variant, and very little if any D3 receptors. This finding, coupled with the
recent demonstration that when co-expressed in vitro D3nf may prevent D3
receptors from reaching the cell surface, suggests that abnormal function/regulation
of D3 receptors may be involved with psychoses associated with schizophrenia.
Recently, a FDA-approved D3-preferring receptor agonist indicated for the treatment
of Parkinson’s disease, pramipexole, was used successfully in conjunction with
traditional neuroleptic treatment in schizophrenic patients. Positive as well as
negative symptoms of schizophrenia were reportedly diminished by 22-62% when
pramipexole was added to haloperidol drug therapy (Kaspar et al., 1997). Another
agent, CI-1007, a putative dopamine autoreceptor agonist and partial D2/D3
receptor agonist, is currently under development specifically for the treatment of
schizophrenia (Sramek et al., 1998). Thus far, these studies have enrolled only a
small number of patients and have only been conducted for short time periods.
More extensive experimentation examining the effectiveness of D3 receptor
agonists as calming agents will be required to elucidate the mechanism of their
antipsychotic action.
The calming nature of D3 receptor agonists in treating diseases such as psychoses
at first seems to be counter-intuitive given the current repertoire of drugs used as
antipsychotic agents, which have historically been D2-like receptor antagonists.
One school of thought on the paradoxical effectiveness of D3 agonists as calming
agents is related to the localization of D3 receptors within neuronal synapses.
Within the mesocorticolimbic system, D3 receptors are located pre-synaptically
and function as autoreceptors. As such, one functional role of D3 autoreceptors
is to regulate dopamine release in an inhibitory manner. It could be proposed that
if D3 receptors are not properly localized within dopaminergic synapses, they might
not mediate appropriate autoreceptor function. Failure of proper D3 receptor
function could be due to faulty dopaminergic circuitry as a result of D3 receptorsecond messenger uncoupling, inappropriate D3 receptor protein-protein
interactions, or lack of D3 receptor cell surface expression due to over-expression
of D3nf or other D3 receptor splice variants. Failure of D3 autoreceptors to relay
appropriate negative feedback in response to dopamine may result in overactive
dopamine release. Excessive dopamine can, in turn, be blocked by treatment
The Advantages and Limitations
of Calmatives for Use as a
Non-Lethal Technique
24

with dopamine receptor antagonists (current therapeutic approach to schizophrenia
treatment). Alternatively, if this hypothesis is correct, pharmacologic agonists
specifically targeting D3 autoreceptors might also prove effective as calmatives.
Another D3 receptor agonist, PD12890, has also yielded promising results in animal
models of schizophrenia. Experimental models of schizophrenia in rats may be
induced following administration of various pharmacologic agents including
phencyclidine (PCP), apomorphine, or dizocilpine. Administration of PD128907
was found to produce an unusual sedative effect on stereotyped behavior in several
rat models of schizophrenia (Witkin et al., 1998). This sedative effect was
comparable in efficacy to clozapine and more efficacious than that produced by
haloperidol, two commonly used anti-psychotic medications. Additionally,
PD128907 caused no movement disorders, a common, severe side effect of
haloperidol treatment (Witkin et al., 1998) nor was PD128907 associated with lifethreatening blood disorders, a limiting factor of clozapine therapy.
An additional mechanism of action of the D3 receptor agonists pramipexole and
PD 128907 may also play a role in their antipsychotic activity. These D3 receptor
agonists are potent antioxidants and have been shown to be neuroprotective,
preventing neuronal death caused by high local concentrations of dopamine.
Furthermore, these D3 receptor agonists were shown to enhance the growth of
dopaminergic neurons (Ling et al., 1999). The neuroprotective and antioxidant
properties of these D3 receptor agonists aids in explaining the benefit that these
agents provide in animal models of PCP-induced psychosis. The frequently abused
drug PCP appears to induce psychosis by modulation of several neurotransmitter
systems, acting both as a NMDA glutamate receptor antagonist and an inhibitor of
dopamine reuptake. Together, this results in increased concentrations of dopamine
in neuronal synapses following PCP administration, which is deleterious to the
survival of neurons. Therefore, it appears that D3 receptor agonists may exert
their calming, antipsychotic actions within the central nervous system via several
different and unique mechanisms.
Another interesting feature of the D3 receptor agonist PD128907 is that this agent
has also been found effective in blocking convulsant and lethal effects of cocaine
administration (Witkin and Gasior, 1998). The mechanisms by which a D3 receptor
agonist may exert such dramatic calming properties is currently unknown and
thus more experimentation targeted at understanding the physiologic function of
D3 receptors is warranted. Further development of D3 dopamine receptor specific
agonists and antagonists will be required to elucidate the calming effects of D3
receptor agonists such as PD128907, CI-1007, and pramipexole. Additional clinical
studies will also be required in order to fully ascertain the pharmacologic
applications for which D3 receptor agonists will be of use as calmative agents.
SELECTED REFERENCES:
Kasper S, Barnas C, Heiden A, Volz HP, Laakmann G, Zeit H and Pfolz H (1997)
Pramipexole as adjunct to haloperidol in schizophrenia: Safety and efficacy.

European Neuropsychopharmacol. 7:65-70.
The Advantages and Limitations
of Calmatives for Use as a
Non-Lethal Technique
25

Ling ZD, Robie HC, Tong CW and Carvey PM (1999) Both the antioxidant and D3
agonists actions of pramipexole mediate its neuroprotective actions in
mesencephalic cultures. Journal of Pharmacology and Experimental

Therapeutics 289:202-210.
Sramek JJ, Eldon MA, Posvar E, Feng MR, Jhee SS, Hourani J, Sedman AJ, Cutler
and NR (1998) Initial safety, tolerability pharmacodynamics, and
pharmacokinetics of CI-1007 in patients with schizophrenia.

Psychopharmacology Bulletin 34:93-99.
Witkin JM and Gasior M (1998) Dopamine D3 receptor involvement in the
convulsant and lethal effects of cocaine. Polish Journal of Pharmacology 50
(suppl):44-45.
Witkin J, Gasior M, Acria J, Bekman M, Thurkauf A, Yuan J, DeBoer P, Wikstrom H
and Dijkstra D (1998) Atypical antipsychotic-like effects of the dopamine D3
receptor agonist (+)-PD 128,907. European Journal of Pharmacology 347:R1-R3.

Selective Serotonin Reuptake Inhibitors
SELECTED COMPOUNDS:
– fluoxetine (Prozac)
– sertraline (Zoloft)
– paroxetine
– WO-09500194
CLINICAL EFFECTS:
Serotonin selective reuptake inhibitors, termed SSRIs, are used therapeutically in
the treatment of several psychiatric disorders, including depression and obsessive
compulsive disorders. A drawback is that these compounds require repeated
administration to produce calming effects.
The SSRIs, including fluoxetine and sertraline, are typically used as oral medication.
These compounds are found to be safe and effective and may be used alone or in
combination with lithium salts in the treatment of depression.
The onset of effective SSRI drug action is faster when combined with lithium
(decreased from 2-3 weeks to less than 1 week) for treatment of depression. New
compounds under development (WO 09500194) are being designed with a faster
onset of action. Drug development is continuing at a rapid rate in this area due to the
large market for the treatment of depression (15 million individuals in North America).
MECHANISM OF ACTION:
The SSRIs act to directly block one type of receptor for the brain serotonin (5hydroxytryptamine; 5-HT)-containing neurotransmitter system, specifically the
serotonin reuptake sites. Once bound tightly to the serotonin reuptake site
(sometimes termed uptake site or transporter), these drugs prolong the effects of
serotonin already active in the nerve terminal and directly produce an inhibitory
effect on the cell bodies synthesizing the neurotransmitter serotonin. Once this
selective inhibition is produced, the target projection regions of the serotonergic
system produce a compensatory response, which, in turn, produces release of
The Advantages and Limitations
of Calmatives for Use as a
Non-Lethal Technique
26

additional serotonin in brain areas such as the hypothalamus, hippocampus and
cortex. It is hypothesized that the increase in the amount of serotonin leads to
improved control of behaviors linked this transmitter system, which include
aggression, agitation, anxiety, general affect (mood), and sleep, among others.
This neurotransmitter system was the first of its kind to be identified with regulation
of sleep; enhanced levels of serotonin produced following a large meal containing
the precursor tryptophan, which is found in turkey meat, produces the sleepiness
associated with ingestion of a Thanksgiving turkey dinner.
In addition to the serotonin reuptake site, there are several serotonin receptor
subtypes including 5-HT1A, 5-HT1B, 5-HT1D, 5-HT2A, 5-HT3, 5-HT4, 5-HT6 and
5-HT 7 receptors, among others. Thus, these receptors confer different
pharmacological properties in different areas of the central nervous system.
Other new developments include the targeting of compounds with high selectivity
for multiple serotonin receptors and the serotonin reuptake site (e.g. EP-0072294,
a 5-HT1A receptor antagonist, 5-HT1A receptor partial agonist and a 5-HT uptake
inhibitor). The advantage of these new compounds is the maintenance of selectivity
and specificity of the pharmaceutical agent for the serotonin reuptake site combined
with a faster onset of drug action due to synergistic drug actions in defined neurons
and specific brain regions.
Antidotes to the administration of SSRIs are not available. However, toxic reactions
to appropriate doses of this class of drugs are minimal.
PROPOSED CONTRIBUTION AS A NON-LETHAL CALMATIVE TECHNIQUE:
Recent studies have identified that SSRIs reduce the symptoms that accompany
personality disorders and modulate a normal personality (Ekselius and Von
Knorring, 1999). The clinical efficacy of fluoxetine, sertraline and other SSRIs
well accepted in the treatment of major depression and in generalized anxiety
disorders. In this regard, treatment with these agents may continue over periods
of months and have established a high safety profile for these agents.
These classes of drugs have also long been noted for effects on sleep; indeed, it
has been speculated that the improvement in depressive symptoms with SSRI
administration may be linked to their ability to improve the onset and quality of
sleep in these patients. Studies of young, healthy volunteers conducted under the
controlled setting of a sleep laboratory indicate a single-dose administered orally
of the SSRI paroxetine acutely enhances the appearance of drowsiness and nausea
in a dose-dependent manner (Saletu et al., 1991).
Reports have also indicated treatment of intermittent explosive behavioral disorders
with sertraline in adults with impulse control disorders (Feder, 1999). In this regard,
the SSRIs are being widely used in the effective management of behavioral
disturbances common with dementia (Herrmann and Lanctot, 1998); these
behavioral symptoms, which commonly include aggression and agitation, contribute
to the premature institutionalization of elderly individuals. While the mechanisms
The Advantages and Limitations
of Calmatives for Use as a
Non-Lethal Technique
27

of the changes in brain function which produce aggression and agitation in these
patients is not known, the fact that treatment with SSRIs may reduce the signs
and symptoms to a point where the individual can control their behavior serves to
underscore a role for the serotonergic neuronal system. Indeed, a role for serotonin
in mediating the paradoxical calming effects of psychostimulants in an animal
model of hyperactivity has emerged; acute administration of fluoxetine blocks the
hyperactivity effects produced by administration of amphetamine or cocaine in a
mutant mouse model (Gainetdinov et al., 1999). Administration of sertraline has
also been demonstrated to significantly reduce irritability and aggressive outburst
in patients with a closed head injury (Kant et al., 1998).
The SSRIs merit further consideration for effective use as a non-lethal technique
as based on an extensive review of the medical literature. These drugs are found
to be highly effective for numerous behavioral disturbances encountered in
situations where a deployment of a non-lethal technique must be considered. This
class of pharmaceutical agents also continues to be under intense development
by the pharmaceutical industry. It is likely that an SSRI agent can be identified in

SSRIs … are found to be
highly effective for
numerous behavioral
disturbances encountered
in situations where a
deployment of a non-lethal
technique must be
considered.

the near future that will feature a rapid rate of onset.
SELECTED REFERENCES:
Ekselius, L and Von Knorring, L. (1999) Changes in personality traits during
treatment with sertraline or citalopram. Br. J. Psychiatry 174:444-448.
Feder, R. Treatment of intermittent explosive disorder with sertraline in 3
patients. (1999) J. Clin. Psychiatry 60:195-196.
Gainetdinove, R. R., Westel, W.C. , Jones, S.R., Levin, E.D., Jaber, M. Caron,
M.G. (1999) Role of serotonin in the paradoxical calming effect of
psychostimulants on hyperactivity. Science 283:397-401.
Herrman, N. and Lanctot, K. L. The management of behavioral disturbances in
dementia: The role of serotonergic therapies. (1998) I drugs 1(2):214-220.
Kant, R., Smith-Seemiller, L., Zeiler, D. Treatment of aggression and irritability
after head injury. (1998) Brain Inj. 12:661-666.
Saletu, B., Frey, R. , Krupka, M., Anderer, P., Grungerger, J., See, W.R. (1991)
Sleep laboratory studies on the single-dose effects of serotonin reuptake
inhibitors paroxetine and fluoxetine on human sleep and awakening
qualities. Sleep 14(5):439-447.

Serotonin 5-HT1A Receptor Agonists
SELECTED COMPOUNDS:
– buspirone (Buspar)
– lesopitron
– alnespirone
– MCK-242
– WAY-100,635
– oleamide
CLINICAL EFFECTS:
Buspirone is a prototypical anxiolytic drug that does not act like a benzodiazepine
The Advantages and Limitations
of Calmatives for Use as a
Non-Lethal Technique
28

due to its actions as a partial agonist at 5-HT1A receptors. Buspirone is highly
effective at relieving anxiety without marked sedation. Unlike benzodiazepines,
this drug has no hypnotic, anticonvulsant, or muscle relaxant properties nor does
it potentiate the CNS depressant effects of conventional sedative-hypnotic drugs,
ethanol, or tricyclic antidepressants. Buspirone is typically used in the treatment
of generalized anxiety state with its effective use requiring a week or more of
treatment. Buspirone produces less psychomotor impairment and is considered
to have limited abuse liability as compared to benzodiazepines, such as diazepam.
However, tachycardia, palpitations, nervousness, and gastrointestinal distress may
occur more frequently with 5HT1A receptor agonists than with benzodiazepines.
Buspirone is also clinically useful in assisting in withdrawal from nicotine during
smoking cessation programs.
MECHANISM OF ACTION:
There are numerous serotonin receptor subtypes in the central nervous system,
including the 5-HT1A receptor. The distribution of this receptor includes a profile
of a high density of binding to the serotonin-containing cell bodies located in the
midbrain, hippocampus, cortex and amydala. Thus, pharmaceutical agents which
bind to this receptor site with high affinity are situated in areas which control
numerous behavioral and physiological functions including cognition, psychosis,
feeding/satiety, temperature regulation, anxiety, depression, sleep, pain perception
and sexual activity.The 5-HT1A receptor subtype was discovered in 1981 by
radioligand binding techniques and cloned in 1988.
The development of 8-OH-DPAT (8-hydroxy-2-dipropyl-amino tetralin) as a selective
agonist for the 5-HT1A receptor has lead to an understanding of the multiple
physiological roles of this receptor as well as its function and distribution in the
central nervous system. Central 5-HT1A receptors have been demonstrated to
exist in both pre-synaptic (termed somatodendritic autoreceptor) and post-synaptic
locations. The physiological activity mediated in the somatodendritic autorecptor
localized on serotonin-containing cell bodies has been established by
electrophysiological recording techniques and neurochemical techniques, including
microdialysis. Stimulation of the post-synaptic 5-HT1A receptor has been evaluated
by a variety of behavioral and physiological measurements and revealed specific
roles in temperature regulation and hormone secretion of ACTH (adrenal
cortiotrophin hormone) which is released in response to stress.
Buspirone, a partial 5-HT 1A receptor agonist, has emerged as the first
nonbenzodiazepine anxiolytic; thus efficacy of this drug has further confirmed a
correlation between the role of serotonin neurotransmission and anxiety. The
receptor binding profile of buspirone is high for the 5-HT1A receptor, lower for the
5-HT7 receptor, and none to low affinity for other 5-HT receptors, noradrenergic,
GABA or dopaminergic receptors. Thus, buspirone has highly specific and unique
effects on one class of neurotransmitter receptor. Numerous compounds with
5-HT1A receptor agonist profiles similar to buspirone continue to be under active
development by the pharmaceutical industry including lesopitron (in Phase II clinical
trials), alnespirone (in Phase II clinical trials) and MCK-242 (in Phase II clinical trials).
The Advantages and Limitations
of Calmatives for Use as a
Non-Lethal Technique
29

Several 5-HT1A receptor antagonists, including WAY 100,635, are well characterized
and available to selectively block this receptor subtype (Schechter and Kelly, 1997).
These selective receptor antagonists are currently being investigated for their use
in the treatment of Alzheimer’s disease where they are hypothesized to improve
cognition by a facilitatory effect on glutamatergic neurotransmission (an excitatory
neurotransmitter). The 5-HT1A receptor antagonists are also being investigated
for their ability to be useful in the treatment of anxiety disorders by enhancement
of 5-HT1A receptor autoreceptor function; this paradoxical effect appears to be a
mechanism that induces a more rapid neuroadaptation of the serotonergic system
under conditions of chronic 5-HT1A receptor stimulation.
Interestingly, oleamide, a member of a recently recognized family of amidated
lipids found in the plasma and cerebrospinal fluid of mammals, has been
demonstrated to provide significant neuromodulatory effects at 5-HT1A and
5-HT2A receptors (Boger et al, 1998). Included in this receptor family are two
endogenous ligands for the cannabinoid receptor, anadamide and
palmitoyethanolamine, which have direct actions on cannabinoid receptor as well
as known neuromodulatory properties. Of interest is the demonstration that
intraperitoneal administration of oleamide induces sleep and has long-lasting
hypothermic effects with distinct neuronal targets in the rat and mouse brain.
Oleamide is a compound that potentially may be useful in a clinical setting to
enhance the behavioral effects of a 5-HT1A receptor agonist, such as buspirone.
Alternatively, oleamide may be useful in producing a sleep-like state when administrered
alone, although this profile has yet to be fully established in a clinical setting.
PROPOSED CONTRIBUTION AS A NON-LETHAL CALMATIVE TECHNIQUE:
Buspirone is a safe and effective drug for the treatment of anxiety, and should
receive consideration for use settings in which a non-lethal technique may be
required. The use of a selective 5-HT1A receptor agonist would reduce symptoms
of anxiety in an individual or individuals and promote a calmer and more compliant
behavioral state. This pharmaceutical agent has direct effects on serotonin
receptors in brain regions established as key areas in the regulation of cognition,
mood and motor behaviors.
One consideration in the use of buspirone as a non-lethal technique, is the route
and duration of treatment required to produce a calm state. Currently, oral
medications are required with repeated ingestion over a week or longer period
with this compound. Two new formulations are under development including a
transdermal (or patch) and a transmucosal route of drug administration (Phase 3
Clinical trial, Bristol-Myers Squibb Co. and Discovery Phase, TheraTech Inc.). Use of
a transdermal patch to deliver buspirone may be effective in a prison setting where
there may have been a recent anxiety-provoking incident or confrontation and this
application warrants further consideration as a specific type of non-lethal technique.
Currently new, more potent second-generation buspirone-like compounds are in
clinical trials for use in treatment of anxiety disorders, including lesopitron, MCKThe Advantages and Limitations
of Calmatives for Use as a
Non-Lethal Technique
30

242, and alnespirone. These compounds, much like buspirone, are both safe and
effective in controlling the symptoms of generalized anxiety, which may include
marked agitation and restlessness. Alnespirone is also being evaluated for approval
in the treatment of aggression as low doses in animal studies were shown to
suppress offensive behavior (Drug Report, 1999 Current Drugs; IDDB.com).
Significant advantages in bioavailablity and side effects may also be found with
alnespirone as it is metabolized in a distinctly different manner than buspirone.
The cardiovascular effects of alnespirone, however, have not yet been well studied.
Overall, a review of the scientific literature has indicated that buspirone and closely
related 5-HT1A receptor agonists are effective in antagonizing isolation-induced
(White et al., 1991) and resident intruder (de Boer, et al., 1999) tests of aggression
in animals. A role for serotonin neurotransmitter systems continues to be closely
linked to aggressive behavior (Moechars et al, 1998). Moreover, the clinical effects
of buspirone in selected populations which may be agitated or aggressive, including
violent parolees (Cherek, et al., 1999), psychiatrically hospitalized children with
symptoms of anxiety and moderately severe aggression (Pfeffer et al., 1997), as
well as combat disorders (Hammer et al, 1997), indicate that further research on
5-HT1A receptor agonists is warranted for their consideration as a non-lethal technique.
SELECTED REFERENCES:
Boger, D.L., Patterson, J.E. and Jin, Q. (1998) Structural requirements for the
5-HT2A and 5-HT1A serotonin receptor potentiation by the biologically active
lipid oleamide. Proc. Natl. Acad. Sci. USA 95(8):4102-4107.
Cherek, D.R., Moeller, F.G., Khan-Dawood, F., Swann, A. and Lane, S.D. (1999)
Prolactin response to buspirone was reduced in violent compared to
nonviolent parolees. Psychopharmacology 142:144-148.
DeBoer, S.F., Lesourd, M., Mocaer, E. and Koolhaas, J.M. (1999) Selective
antiaggressive effects of alnespirone in resident-intruder test are mediated
via 5-hydroxytrypamine1A receptors: A comparative pharmacological study
with 8-hydroxy-2-dipropylaminotetralin, ipsaprione, buspirone, eltoprazine,
and WAY-100635, J. Pharmacol.Exp. Ther. 288:1125-1133.
Hamner, M. Ulmer, H. and Horne, D. (1997) Buspirone potentiation of
antidepressants in the treatment of PTSD. Depress. Anxiety 5: 137-139.
Moechars, D., Gilis, M., Kuiperi, C. Laenen I. And Van Leuven, F. (1998)
Aggressive behavior in transgenic mice expressing APP is alleviated by
serotonergic drugs. Neuroreport 9:3561-3564.
Pfeffer, C.R., Jiang, H. and Domeshek, L.J. (1997) Buspirone treatment of
psychiatrically hospitalized prepubertal children with symptoms of anxiety
and moderately severe aggression. J. Child. Adolesc. Psychopharmacol.
7:145-155.
Schecter, L.E. and Kelly, M.G. (1997) An overview of 5-HT1A receptor
antagonists: historical perspective and therapeutic targets. Serotonin ID

Alert 2(7):299-309.
White, S.M., Kucharik, R.F., Moyer, J.A. (1991) Effects of serotonergic agents on
isolation-induced aggression. Pharm. Biochem. Behav. 39:729-736.

The Advantages and Limitations
of Calmatives for Use as a
Non-Lethal Technique
31

Opioid Receptors and Mu Agonists
SELECTED COMPOUNDS:
– morphine
– carfentanil
– Naloxone (antagonist)
CLINICAL EFFECTS:
Although morphine is the prototypic analgesic used to treat moderate to severe
pain, an ongoing search for new narcotic agents devoid of side effects predominates

HO

current pain research. Possible side effects associated with opioid use include
respiratory depression (potentially fatal), miosis (pupillary constriction), sedation and
euphoria. A very powerful analgesic, fentanyl, also has a high abuse potential and

O

may be habit forming (and serious life-threatening respiratory depression could occur).
N—CH3

Carfentanil is a narcotic that can be administered via unconventional means (see
below). This feature of carfentanil may be very useful in treating non-compliant or
unmanageable individuals. New compounds such as MorphiDex and RB-101 are

HO

Morphine

being studied for their ability to alter pain sensation. Carfentanil has a unique
utility in the practice of sedating animal populations. This drug has been used
successfully to immobilize a variety of large exotic animals and is the only opioid
approved in the United States for this purpose. Carfentanil has been administered
intramuscularly via dart injection, intravenously and orally.
MECHANISM OF ACTION:
Opioid receptors are classified into three different categories based on their
pharmacological profiles. Mu (m), delta (d) and kappa (k) opioid receptors are
selectively activated by the endogenous agonists beta-endorphin, met/leuenkephalin, and dynorphin, respectively. Recently, a novel opioid receptor, ORL-

1, has been isolated via cloning techniques. The ORL-1 receptor and its
endogenous ligand orphanin FQ/nociceptin are pharmacologically complex,
producing both inhibition and potentiation of pain neurotransmission (Pasternak
and Letchworth, 1999).
As opioid compounds are capable of producing a wide array of physiological effects,
both desired and undesired, the distinct anatomical localization of individual opioid
receptor populations becomes particularly important. The distribution of opioid
receptors in the central and peripheral nervous systems (CNS and PNS,
respectively) correlates with the therapeutic actions and side effects of opiate
analgesics. Due to their powerful analgesia-producing properties, mu receptors
and mu receptor-selective agonists have been the primary focus of pain research
and management. Each of these effects can be reversed by the administration of
the opioid receptor antagonists naloxone or naltrexone.
These antagonistic agents are therapeutically important due to their ability to

The Advantages and Limitations
of Calmatives for Use as a
Non-Lethal Technique
32

reverse symptoms, particularly respiratory depression, of an opiate overdose.
Morphine produces its antinociceptive effects by interacting with mu opioid
receptors selectively. Fentanyl is a mu opioid receptor agonist that has a special
usefulness as both a transdermal patch, and a “lollipop” (oral lozenge used to
treat surgical pain in children). MorphiDex is a combination of morphine and
dextromethorphan (an opioid derivative). MorphiDex shows promise for the
treatment of severe pain since it appears to be much more potent than morphine
and delivers significantly superior pain relief than similar doses of morphine without
increasing side effects.
Carfentanil binds selectively to brain mu opioid receptors. Although not yet used in
human populations, this drug offers the potential advantage of being administered
to non-compliant or violent patients, and requires only indirect contact.
PROPOSED CONTRIBUTION AS A NON-LETHAL CALMATIVE TECHNIQUE:

Carfentanil… offers the
potential advantage of being
administered to noncompliant or violent
patients, requiring only
indirect contact

Morphine is currently the drug of choice for treating moderate to severe pain, but
may also produce euphoria, indifference to surroundings, sedation and depressed
respiration. Carfentanil has a unique utility in the practice of sedating animal
populations. This drug has been used successfully to immobilize a variety of
large exotic animals. Carfentanil has been administered intramuscularly via dart
injection, intravenously, and orally. Therefore, this drug offers the distinct advantage
of being administered to subjects at far distances. Additionally, although not yet
used in human populations, this drug offers the potential advantage of being
administered to non-compliant or violent patients, requiring only indirect contact.
In addition, naloxone and other opioid receptor antagonists are available as an
antidote.
DISCUSSION:
Opioids or opiates are narcotic compounds that have very powerful uses as
analgesic, sedative, antitussive (anti-cough) and anti-diarrheal agents. The term

opiate refers to any drug derived from or containing opium. The term opioid refers
specifically to any non-opium-derived narcotic. For example, the naturally occurring
enkephalins and endorphins are considered opioids while morphine is considered an opiate.
Historically, opiates have been used for their mood altering properties. Indeed,
the opiate drug opium is very unique in that it has been used for hundreds of
years, with references to its use dating back to 3000 B.C. It was not until the
1800s that morphine was isolated from opium. Since that time, morphine and
other narcotic compounds have been used widely for their analgesic and robust
sedative properties. Although morphine is the prototypic analgesic used to treat
moderate to severe pain, an ongoing search for new narcotic agents devoid of
side effects predominates current pain research.
Discussed below are the various opioid receptors and the specific effects modulated
by these receptors. In addition, the latest findings are presented from studies of
newly developed analgesic agents that produce their pain-alleviating effects by
interacting with the opioid system.
The Advantages and Limitations
of Calmatives for Use as a
Non-Lethal Technique
33

As opioid compounds are capable of producing a wide array of physiological effects,
both desired and undesired, the distinct anatomical localization of individual opioid
receptor populations becomes particularly important. The distribution of opioid
receptors in the central and peripheral nervous systems (CNS and PNS,
respectively) correlates with the therapeutic actions and side effects of opiate
analgesics. For example, in treating pain, the desired effect is antinociception or
analgesia, while an unwanted opioid effect (i.e., side effect), in this case, would be
constipation. More specifically, mu opioid receptors localized to the spinal cord
act to interrupt transmission of pain impulses traveling into the CNS from the
periphery (en route to the brain where a noxious stimulus is perceived as being
“painful”). As a result, a decreased pain sensation is experienced. However,
concurrent stimulation of other opioid receptors localized in the gastrointestinal
tract, for instance, may result in constipation (due to a mu/delta receptor-mediated
decrease in intestinal peristalsis), an annoying side effect of the narcotic analgesic.
Other possible side effects associated with opioid use include respiratory
depression (potentially fatal), miosis (pupillary constriction), sedation and euphoria.
Due to their powerful analgesia-producing properties, mu receptors and mu
receptor-selective agonists have been the primary focus of pain research and
management. As mu receptors are densely populated in CNS structures intricately
involved in pain transmission (hippocampus, cerebral cortex, dorsal horn of the spinal
cord, periaqueductal grey and thalamus), they are ideally positioned to control pain.

Mu opioid receptors are further subdivided into two additional receptor subtypes,
m1 and m2 receptors. The m1 receptor subtype produces analgesia when stimulated.
Miosis and euphoria are also selective to m1 receptor activation while constipation
and respiratory depression are associated with m2 receptor stimulation (Cherny,
1996). Each of these effects can be reversed by the administration of the opioid
receptor antagonists naloxone or naltrexone. These antagonistic agents are
therapeutically important due to their ability to reverse symptoms, particularly
respiratory depression, of an opiate overdose.
Morphine produces its antinociceptive effects by interacting with mu opioid
receptors selectively (Pasternak, 1988). Morphine is currently the drug of choice
for treating moderate to severe pain, but may also produce euphoria, indifference
to surroundings, sedation and depressed respiration.
Route of administration is a very important aspect of pharmaceutical development
and plays a fundamental role in patient compliancy. For example, fentanyl is a mu
opioid receptor agonist that has a special usefulness as both a transdermal patch,
and a “lollipop” (oral lozenge used to treat surgical pain in children). Although a
very powerful analgesic, fentanyl also has a high abuse potential and may be
habit forming (and serious life-threatening respiratory depression could occur).
This versatility of drug delivery offers distinct advantages over other pain relievers
that are ineffective due to route of administration limitations. Thus, the development
of new pain-relieving opiate drugs capable of being administered via several routes
The Advantages and Limitations
of Calmatives for Use as a
Non-Lethal Technique
34

is at the forefront of drug discovery. For example, carfentanil is a narcotic that can
be administered via unconventional means (see below). This feature of carfentanil
may be very useful in treating non-compliant or unmanageable individuals.
New compounds such as MorphiDex and RB-101 are being studied for their ability
to alter pain sensation. MorphiDex is a combination of morphine and
dextromethorphan (an opioid derivative). MorphiDex shows promise for the
treatment of severe pain since it appears to be much more potent than morphine
and delivers significantly superior pain relief than similar doses of morphine without
increasing side effects. RB-101 is a non-opioid compound that acts to inhibit the
enzymatic breakdown of endogenous opioids, thereby enhancing their analgesic activity.
In addition, RB-101 shows promise in the treatment of opiate withdrawal syndrome.
CARFENTANIL
Although this fentanyl derivative was developed nearly two decades ago, it has
gained new interest from the perspective of this report because of the recent
pursuit of novel calmative agents capable of unconventional administration.
Carfentanil has a unique utility in the practice of sedating animal populations.
This drug has been used successfully to immobilize a variety of large exotic animals
(Cornick and Jensen, 1992; Karesh et al., 1998; Kupper et al., 1981; Miller et al.,
1996; Ramsay et al., 1995; Seal et al., 1985). It is the only opioid approved in the
United States for this purpose.
Carfentanil binds selectively to brain mu opioid receptors (Saji et al., 1992; Titeler

et al., 1989). Because this opioid has a long duration of action, renarcotization
(recurring onset of narcotic effects) may develop 2 to 24 hours after administering
an opioid antagonist (Shaw et al., 1995).
Carfentanil has been administered intramuscularly via dart injection, intravenously,
and orally (e.g. hand fed or mixed with honey) (Baker and Gatesman, 1985; Ramsay

et al., 1995; Seal et al., 1985; Sleeman et al., 1997). Therefore, this drug offers
the distinct advantage of being administered to subjects at far distances.
Additionally, although not yet used in human populations, this drug offers the
potential advantage of being administered to non-compliant or violent patients, in
situations requiring only indirect contact. However, it is important to note that
prior to the immobilization stage, an initial excitement phase has been reported in
animals following administration of carfentanil (Raath et al., 1992). Thus, application
of this drug to human conditions of belligerence or aggressiveness may require
special considerations. These provocative concepts merit future investigation.
SELECTED REFERENCES:
Baker, J.R. and T. J. Gatesman. (1985) Use of carfentanil and a ketaminexylazine mixture to immobilise wild grey seals (Halichoerus grypus).

Vet.Rec. 116(8):208-210.
Cherny, N.I. (1996) Opioid analgesics: Comparative features and prescribing
guidelines. Drugs 51, 713-737.
Cornick, J. L. and J. Jensen. (1992) Anesthetic management of ostriches.
The Advantages and Limitations
of Calmatives for Use as a
Non-Lethal Technique
35

J.Am.Vet.Med.Assoc. 200(11):1661-1666.
Karesh, W. B., M. M. Uhart, E. S. Dierenfeld, W. E. Braselton, A. Torres, C.
House, H. Puche, and R. A. Cook. (1998) Health evaluation of free-ranging
guanaco (Lama guanicoe). J.Zoo.Wildl.Med. 29(2):134-141.
Kupper, W., N. Drager, D. Mehlitz, and U. Zillmann. (1981) On the
immobilization of hartebeest and kob in Upper Volta. Tropenmed.Parasitol.
32(1):58-60.
Miller, M. W., M. A. Wild, and W. R. Lance. (1996) Efficacy and safety of
naltrexone hydrochloride for antagonizing carfentanil citrate immobilization
in captive Rocky Mountain elk (Cervus elaphus nelsoni). J.Wildl.Dis.
32(2):234-239.
Pasternak, G. W. (1988) The Opiate Receptors (New Jersey, Humana Press).
Pasternak, G.W. and Letchworth, S.R. (1999) Future opioid alangesics:
Targeting the old and the new. Current Opinion in CPNS Investigational

Drugs, 1: 54-64.
Raath, J. P., S. K. Quandt, and J. H. Malan. (1992) Ostrich (Struthio camelus)
immobilisation using carfentanil and xylazine and reversal with yohimbine
and naltrexone. J.S.Afr.Vet.Assoc. 63(4):138-140.
Ramsay, E. C., J. M. Sleeman, and V. L. Clyde. (1995) Immobilization of black
bears (Ursus americanus) with orally administered carfentanil citrate.

J.Wildl.Dis. 31(3):391-393.
Saji, H., D. Tsutsumi, Y. Magata, Y. Iida, J. Konishi, and A. Yokoyama. (1992)
Preparation and biodistribution in mice of [11C]carfentanil: a
radiopharmaceutical for studying brain mu-opioid receptors by positron
emission tomography. Ann.Nucl.Med. 6 (1):63-67.
Seal, U. S., S. M. Schmitt, and R. O. Peterson. Carfentanil and xylazine for
immobilization of moose (Alces alces) on Isle Royale. J.Wildl.Dis. 21 (1):4851, 1985.
Shaw, M. L., J. W. Carpenter, and D. E. Leith. Complications with the use of
carfentanil citrate and xylazine hydrochloride to immobilize domestic
horses. J.Am.Vet.Med.Assoc. 206 (6):833-836, 1995.
Sleeman, J. M., W. Carter, T. Tobin, and E. C. Ramsay. Immobilization of
domestic goats (Capra hircus) using orally administered carfentanil citrate
and detomidine hydrochloride. J.Zoo.Wildl.Med. 28 (2):158-165, 1997.
Titeler, M., R. A. Lyon, M. J. Kuhar, J. F. Frost, R. F. Dannals, S. Leonhardt, A.
Bullock, L. T. Rydelek, D. L. Price, and R. G. Struble. Mu opiate receptors
are selectively labelled by [3H]carfentanil in human and rat brain.

Eur.J.Pharmacol. 167 (2):221-228, 1989.

Neurolept Anesthetics
Intravenous Anesthesia Induction Agents
SELECTED COMPOUNDS:
– propofol (di-iso-propylphenol)
CLINICAL EFFECTS:
Propofol is a short acting intravenous hypnotic agent, which produces rapid
induction of anesthesia. Brief periods of apnea (no breathing) and low blood
The Advantages and Limitations
of Calmatives for Use as a
Non-Lethal Technique
36

pressure may occur with minimal change in heart rate. Reversal occurs
spontaneously with minimal hangover or sedative effects (no antidote needed or
available). As an intravenous anesthetic agent with minimal side effects, propofol
is used extensively on a daily basis for general anesthesia as well as conscious
sedation (i.e. giving just enough for a patient to tolerate an unpleasant procedure
such as colonoscopy or gastroscopy.)
MECHANISM OF ACTION:
Propofol effects are mediated in the brain and spinal cord by stimulating the GABA
receptor. Propofol inhibits neurotransmission by stimulating the chloride channel,
which leads to hyperpolarization of the nerve and less likelihood of passing a
nerve stimulus.
As a GABA receptor stimulant, propofol is also used extensively with other directly

…propofol …a small or
large dose, will only keep
the patient asleep for a
maximal interval of 30
minutes.

GABA stimulating agents (such as barbituates) and indirect acting GABA agents
(such as fentanyl) to produce sedation for prolonged sedation (such as intensive
care units).
The synergistic use of agents (where 1+1=3 versus additive agents where 1+1=2)
is clearly demonstrated in daily practice by propofol. Use of a benzodiazepine
(such as midazolam) and a GABA-ergic agent (such as propofol) dramatically
decreases the dosage requirements for both agents with enhanced safety profile for
both agents.
PROPOSED CONTRIBUTION OF A NON-LETHAL CALMATIVE TECHNIQUE:
Propofol demonstrates a general principle, that the longer a drug is infused (or
administered), or the longer the dose given (thereby remaining in the body for a
longer time period), the longer the effect of the drug will last. For instance, a short
acting (3-5 minute) intravenous anesthetic agent (such as thiopental, “Pentothal”)
will keep a patient asleep for 3-5 minutes after a single bolus dose, but after a
large dose, or prolonged infusion, patients may take 1-3 days to wake up. This is
called the context sensitive half-time: the context is the duration of infusion and the
half time is the time taken for the drug to decrease by 50%. In contrast, a drug like
propofol, when administered for a day or a week, a small or large dose, will only keep
the patient asleep for a maximal interval of 30 minutes. Second, no antidote is required
or necessary, as metabolism of the drug will occur rapidly and spontaneously.
While no further compounds in the propofol (propyl-phenyl) class are under
investigation, the effects of GABA receptor stimulants as a method of producing a
calmative effect will be of great interest. The clinical experience of using multiple
GABA stimulating agents as well as other synergistic drugs will be directly
transferable, as new drugs in all these classes become available.
This topic is recommended for further research and holds great promise for nonlethal applications, and will be a fruitful area for future investigation for non-lethal
applications.

The Advantages and Limitations
of Calmatives for Use as a
Non-Lethal Technique
37

Neurolept Anesthetic Combinations
SELECTED COMPOUNDS:
-

droperidol and fentanyl combination (Innovar)

-

phencyclidines (Ketamine)

CLINICAL EFFECTS:
The combination of these two medications leads to a state of “unawareness” called
the neuroleptic state. This differs from the usual anesthetic state where no movement
occurs, the patient is well relaxed, and airway obstruction occurs readily. In the
neuroleptic state, the patients retain muscle tone, small and large muscle movements
occur and airway obstruction is less likely due to the retained muscle tone.
The neuroleptic state is characterized by marked tranquilization and sedation with a
state of mental detachment and indifference while reflexes remain essentially intact.

Due to the prolonged
duration of action…
the side effects…
droperidol is not believed
to be of interest as a
non-lethal technique.

MECHANISM OF ACTION:
The sites of action of droperidol is in the central nervous system (brain and spinal
cord) where it interferes with transmission of nerve impulses at dopamine,
norepinephrine, serotonin, and GABA synaptic sites.
Neurolept anesthesia was used extensively in the 1970’s to avoid the perceived
dangerous side effects of inhaled volatile agents. Due to the prolonged duration
of action, and the development of new shorter acting agents, the neurolept
technique is no longer widely practiced.
PROPOSED CONTRIBUTION AS A NON-LETHAL TECHNIQUE:
Due to the prolonged duration of action, (2-4 hours) and the side effects (alpha blockade
with decreases in blood pressure), droperidol is not believed to be of interest as a nonlethal technique. However, the neuroleptic state is of great interest due to the
maintenance of muscle tone and reflexes while a state of “unawareness” is produced.
As mentioned, the neuroleptic state has several advantages compared to the usual
concept of general anesthesia. For example, droperidol has actions at many types
of receptors with a fixed ratio of effects at each receptor type. Based upon general
pharmacological principles, it should be possible to develop a mixture of highly
specific agents, each coupling to a single receptor type. The concentrations and
balance of each agent could be varied to design a mixture, which would reproduce
the neuroleptic state without the undesirable side effects. The agents could also
be developed (and chosen) to obtain a highly accurate duration of action.
The neurolept anesthetics should be further considered for potential as non-lethal
calmative techniques.

The Advantages and Limitations
of Calmatives for Use as a
Non-Lethal Technique
38

Corticotropin-releasing Factor Receptor Antagonists
SELECTED COMPOUNDS:
– CP 154,526 (antagonist)
– NBI 27914 (antagonist)
– CRF-BP (binding protein)
CLINICAL EFFECTS:
Currently in Discovery Phase: no approved clinical use.
MECHANISM OF ACTION:
Corticotropin-Releasing Factor (CRF) is a peptide hormone in humans and
mammalian species that regulates basal and stress-induced release of hormones,

The CRF antagonists are a
novel approach to producing
a calm behavioral state.

including ACTH, B-endorphin and other opioid peptides. The physiological effects
of CRF are mediated at CRF1 and CRF2 receptors and are closely linked to mood
disorders including anxiety and stress. When these receptors are blocked by
administration of selective antagonists (CP154,526, NBI 27914) anxiety – related
behaviors are alleviated. These CRF antagonists produce calming effects after
seizures induced in animal models. Regulation of the binding protein (BP) for
CRF also demonstrates a potential therapeutic target for producing a less anxious,
calm behavioral state.
PROPOSED CONTRIBUTION AS A NON-LETHAL CALMATIVE TECHNIQUE:
The CRF antagonists are a novel approach to producing a calm behavioral state.
These peptides, when combined with new approaches for drug delivery of peptides
(see Objective 4) warrant further attention for possible prototype development of
a non-lethal calmative technique.
DISCUSSION:
Corticotropin-releasing factor (CRF), also called corticotropin-releasing hormone
(CRH), is a 41- amino acid peptide originally identified from bovine hypothalamus.
CRF is highly conserved among species, with human and rat CRF identical to
each other and differing only by 7 residues from bovine CRF. In non-mammalian
species, two CRF-related peptides, sauvagine and urotensin I, have also been
identified from the neurosecretory system of fishes and frogs. Both suavagine
and urotensin I peptides share 50% sequence homology with CRF.
CRF is widely distributed in the brain with highest expression levels in the
hypothalamus. It is the major hypophysiotropic factor regulating basal and stressinduced release of adrenocorticotropic hormone (ACTH), b-endorphin, and other
proopiomelanocortin-derived peptides. In addition, CRF is also found in cortical
and limbic structures. CRF appears to be both necessary and sufficient for
mounting physiological and endocrine responses to stress.
The physiologic effects of CRF are mediated by two G-protein-coupled seven
transmembrane-spanning domain receptors, CRF1 and CRF2. Two alternative
splice variants for CRF2 have also recently been identified. Localization analysis
of CRF1 receptors has identified neocortical, cerebellar, and limbic structures as
The Advantages and Limitations
of Calmatives for Use as a
Non-Lethal Technique
39

the regions which express CRF1 most abundantly, while CRF2 is predominantly
found in subcortical areas, most notably the lateral septum and hypothalamus.
The distribution of CRF receptors is consistent with the notion that CRF contributes
to both emotional behaviors as well as behavioral responses to stress itself.
Behaviorally, intracerebroventricular administration of CRF produces physiologic
changes similar to those observed in animal models of stress, including increases
in heart rate and blood pressure, alterations in gastrointestinal function, suppression
of exploratory behaviors, decreased food intake, and disruption of reproductive
behaviors. Importantly, these effects are not observed after systemic administration
of CRF nor are they blocked by vagotomy, adrenalectomy, or pretreatment with
dexamethasone, suggesting that these effects are mediated by CRF receptors in
the central nervous system and do not involve stimulation of the pituitary-adrenal
axis. This is further supported by the ability of CRF receptor antagonists to reverse
the behavioral effects of exogenously administered CRF.
Recent studies in mouse lines overexpressing CRF have also emphasized the
anxiogenic properties of CRF, since these mice behaviorally resemble various
animal models of anxiousness. In contrast, CRF knock-out mice exhibited no
anxiety-like behaviors; however, this effect may also be due to compensation by
other peptidergic and aminergic mechanisms. The importance of each of the
CRF receptor subtypes has been examined to determine the impact of CRF in
mediating anxiogenic effects. Intracerebroventricular injection of antisense
nucleotides to CRF1 receptors in several regions of the brain, but not to CRF2
receptors, resulted in a reduction of anxiety-like behavior when challenged with
CRF. These results support the view that CRF1 receptors may be a target for
mediating anxiolytic effects associated with CRF.
CRF antagonists have been studied in various animal models of anxiety. Centrally
administered CRF fragments or amino acid substitutions of CRF including a peptide
termed astressin have been tested in rats. These peptides, which antagonize the
action of CRF at CRF1 receptors were found capable of blocking CRF1 receptors
and inhibiting ACTH release (Rivier et al., 1999). Other truncated CRF peptides
that compete for CRF receptor binding, have also been tested in various models
of anxiety in rodents. In some experimental situations truncated CRF peptides
attenuate anxiety-like behaviors in rodents; however, the same compounds also
induce anxiogenic effects when evaluated under different experimental conditions.
The reason for these discrepancies is unclear, but may be related to differing
baseline levels of stress. Taken together, these results suggest that CRF1 receptor
antagonists may potentially have use as anxiolytics. Therapeutically, peptide
antagonists are difficult to administer for a variety of reasons, including rapid
degradation and difficulty crossing cellular membranes. For this reason, synthetic
CRF receptor antagonists are also under investigation.
Compounds such as CP 154,526 and NBI 27914 inhibit CRF-stimulation of cyclic
AMP and CRF-stimulated ACTH release from cultured rat pituitary cells.
Furthermore, peripheral administration of these agents to rodents in models of
The Advantages and Limitations
of Calmatives for Use as a
Non-Lethal Technique
40

stress and anxiety attenuates stress-induced elevations of ACTH, suggesting that
synthetic CRF1 receptor antagonists may be useful in various neuropsychiatric
disorders (McCarthy et al., 1999). In fact, when compared to the atypical anxiolytic
buspirone in mouse models of anxiety, CP 154,526 was superior in terms of magnitude
of effect and the number of indices of anxiety affected (Griebel et al., 1998). Additionally,
CP 154,526 has also been found to possess calming activities in rodent models of
“helplessness”, a putative model for clinical depression (Mansbach et al., 1997).
In data collected from clinical investigations, there is also evidence for CRF in
mediating anxiety-like behaviors. For example, cerebrospinal fluid levels of CRF
are reportedly elevated in patients suffering from obsessive compulsive disorder
and post-traumatic stress disorder, but not panic disorder. For this reason lipophilic,
non-peptide CRF receptor antagonists for use as anxiolytics have been
investigated, although currently, there is a dearth of literature supporting the use
of these compounds clinically.
CRF-1 receptor antagonists have also been used experimentally for their calming
effects on central neurons involved with CRF-induced seizures. In rodent models
of CRF-seizures originating in the amygdala, the selective CRF-1 receptor
antagonist, NBI 27914, blocked behavioral seizures and prevented epileptic
discharges in electroencephalograms (Baram et al., 1997). Taken together, these
data support diverse calming roles for CRF-1 receptor antagonists in several
aspects of central neuronal activity.
In addition to CRF receptors, another component that regulates CRF function, the
CRF binding protein (CRF-BP) may, in the future, also become a target for
therapeutic action as a calmative agent. CRF-BP is a protein expressed both in
brain, primarily cerebral cortex, amygdala, hypothalamus, hippocampus and
pituitary, as well as in plasma. Levels of CRF-BP in plasma determine the amount
of “free” CRF available for action at CRF receptors. Currently, pharmacologic
agents such as r/h CRF (6-33), a CRF-BP ligand inhibitor, are being used
experimentally to study CRF function and physiology. Pharmacologically, r/h CRF
(6-33) releases bound CRF from CRF-BP, but r/h CRF (6-33) does not interact
with CRF receptors (Heinrichs, 1999). It is conceivable that one approach for
future consideration in mediating calming effects in various anxiety states may
involve modulation of CRF-BP. Induction of CRF-BP expression or administration
of recombinant CRF-BP may be therapeutically useful mechanisms for reducing
free circulating levels of CRF, and therefore, may offer benefits clinically if
hyperreactivity of CRF neural circuitry or high plasma levels of CRF are contributing
factors to anxiety and other stress-related disorders.
SELECTED REFERENCES:
Baram TZ, Chalmers DT, Chen C, Koutsoukas Y and De Soubaeb (1997) The
CRF1 receptor mediates the excitatory actions of corticotropin releasing
factor (CRF) in the developing rat brain: In vivo evidence using a novel,
selective, non-peptide CRF receptor antagonists. Brain Research 770:89-95.
Griebel G, Perrault G and Sanger DJ (1998) Characterization of the behavioral
The Advantages and Limitations
of Calmatives for Use as a
Non-Lethal Technique
41

profile of the non-peptide CRF receptor antagonist CP-154,526 in anxiety
models in rodents. Comparison with diazepam and buspirone.

Psychopharmacology 138:55-66.
Heinrichs SC (1999) The role of corticotropin-releasing factor and its receptors
in the central nervous system. Current Opinion in Drug Discovery and

Development 2:491-496.
Mansbach Rs, Brooks EN and Chen YL (1997) Antidepressant-like effects of
CP-154,526, a selective CRF1 receptor antagonist. European Journal of

Pharmacology 323:21-26.
McCarthy JR, Heinrichs SC and Grigoriadis DE (1999) Recent advances with
the CRF1 receptor: Design of small molecule inhibitors, receptor subtypes
and clinical indications. Curr Pharm Des 5:289-315.
Rivier JE, Kirby DA, Lahrichi SL, Corrigan, Vale WW, and Rivier CL (1999)

The CCKB antagonists
CI-988 and CI-1015
appear to inhibit panic
and induce a calm state…

Constrained corticotropin releasing factor antagonists (astressin
analogues) with long duration of action in the rat. Journal of Medicinal

Chemistry 42:3175-3182.

Cholecystokinin B Receptor Antagonists
SELECTED COMPOUNDS:
– CCK-4
– CI-988 (antagonist)
– CI-1015 (antagonist)
CLINICAL EFFECTS:
Activation of cholecystokinin (CCK) receptors by administration of CCKB agonists
produces panic attacks. These effects and other symptoms of anxiety are blocked
with administration of selective CCKB antagonists.
MECHANISM OF ACTION:
Cholecystokinin (CCK) is a gut and brain peptide with a variety of actions in the
periphery as well as the central nervous system. CCK peptides act at two receptors
termed CCK-A and CCK-B. CCK-B receptors are mainly found in the central
nervous system. CCK-B receptor agonists induced behavioral changes such as
anxiety, disruption of memory, and hyperalgesia. A great deal of evidence implicates
CCK involvement in anxiety and panic attacks.
PROPOSED CONTRIBUTION AS A NON-LETHAL CALMATIVE TECHNIQUE:
The CCKB antagonists CI-988 and CI-1015 appear to inhibit panic and induce a
calm state via a novel mechanism. Combined with new and improved methods for
the delivery of peptide drugs, these compounds warrant further consideration as
a non-lethal technique.
DISCUSSION:
Cholecystokinin (CCK) is a gut and brain peptide with a variety of actions in the
periphery as well as the central nervous system. CCK was originally isolated
three decades ago from porcine gut as a 33 amino acid peptide. Since discovery,
several biologically active variants have been found. In the brain, the most abundant
The Advantages and Limitations
of Calmatives for Use as a
Non-Lethal Technique
42

CCK peptide is CCK8, an eight amino acid terminally sulfated peptide. CCK8 has
been shown to be involved in numerous physiological functions including feeding
behavior, respiratory control, cardiovascular tone, memory processes, nociception,
emotional and motivational behaviors.
CCK peptides act at two receptors termed CCK-A and CCK-B. CCK-A receptors
are predominantly found in the periphery. In contrast, CCK-B receptors are mainly
found in the central nervous system. (Gastrin receptors and CCK- B receptors are
identical.). Both CCK-A and CCK-B receptors are members of the seven
transmembrane spanning domain G-protein-coupled receptor superfamily. Agonist
binding to CCK receptors results in intracellular activation of phospholipase C pathways.
Interest in studying central CKK-B receptors stems largely from studies in which
CCK-B receptor agonists induced behavioral changes such as anxiety, disruption
of memory, and hyperalgesia. In addition to CCK-8, another bioactive peptide
agonist, CCK-4, has been identified in the mammalian brain. The CCK-4
tetrapeptide has a 300-fold higher affinity for CCK-B receptors than CCK-A
receptors and has been associated with eliciting anxiogenic actions.
Co-localization of CCK and dopamine in the ventral tegmental area and the
mesolimbic pathways of the brain suggest that CCK could act as a neuromodulator
of dopaminergic neurotransmission. In the rat, CCK-B mRNA is widely distributed
in areas of the cerebral cortex, hippocampus, septum, amygdala, nucleus
accumbens, caudate putamen, substantia nigra, and cerebellum. These regions,
predominantly mesolimbic areas of the brain, are associated with motivation and
reward behaviors. Thus, CCK may also have a role in regulating motivated
behaviors, including behaviors of anxiety and fear, through action at CCK-B
receptors in the central nervous system.
A great deal of evidence implicates CCK involvement in anxiety and panic attacks.
In animals, administration of the selective CCK-B agonist BC 197 results in
significant anxiogenic effects. Conversely, in the CCK-B agonist-induced model
as well as other models of fear and anxiety, CCK-B receptor antagonists, such as
CI-988 have produced anxiolytic actions (Derrien et al., 1994).
Clinical studies have also demonstrated that the endogenous CCK-B receptor
agonist CCK-4 causes panic attacks both in patients with histories of such disorders
as well as in healthy volunteers. For example, in one placebo-controlled clinical
study, administration of CCK-4 induced panic attacks in 71% of the individuals
tested (n=12); while injection of saline failed to induce any signs of panic (van
Megan et al., 1996). These results demonstrate that anxiety may be mediated at
least in part by CCK-4 activity. Since CCK-4 is predominantly expressed in the
brain, along with CCK-B receptors, one might extrapolate from this data that CCKB receptor antagonists may be useful anxiolytic agents.
To test this hypothesis, CI-988, a CCK-B receptor antagonist, was evaluated in a
placebo-controlled double-blind three-way cross-over study to determine its
The Advantages and Limitations
of Calmatives for Use as a
Non-Lethal Technique
43

effectiveness in attenuating panic symptoms induced by intravenous administration
of CCK-4. Panic attack frequency and a decrease in panic symptoms including
chills/hot flashes, chest pain/discomfort and anxiety/fear/apprehension were
significantly diminished by CI-988 pretreatment (Bradwejn et al., 1995). These
results suggest that CCK-B receptors may mediate the anxiogenic properties of
CCK-4 and that CCK-B receptor antagonists may be useful as calming agents.
Although anxiolytic effects were obtained with CI-988, the clinical development of
this compound, which structurally is a peptoid derivative, was limited due to poor
absorption and efficient hepatic metabolism. Modifications of the chemical structure
of CI-988, led to development of CI-1015, for which bioavailability and blood-brain
permeability is enhanced. Additionally, newer CCK-B receptor antagonizing
compounds have been identified which differ entirely in chemical structure from
CI-988 and CI-1015. Examples include the benzodiazepeine derivative L-365,260,
the ureidoacetamide RP-69758, the diphenylpyrazone LY-288,513, and the
asperlicin-related quinazolinones. Chemical modifications of these compounds
have resulted in both significant increases in bioavailability and improved aqueous
solubility (Noble and Roques, 1999).
Currently, several CCK-B receptor antagonists are being investigated for clinical
utility. Two of these compounds are chemically related to benzodiazepines. L740093, with approximately 10,000-fold more selectivity for CCK-B receptors than
CCK-A receptors, is currently in phase I clinical trials for treatment of anxiety
disorders. Another agent, L-365260, is currently under evaluation in phase II trials
for the treatment of anxiety and benzodiazepine withdrawal symptoms. Another
compound, PD-145942, is still in the discovery phase. PD-145942 is under
development as potential treatment for anxiety disorders, obesity, pain, and
schizophrenia.
Not only may CCK-B receptor antagonists find utility as anxiolytic agents, but
various clinical and preclinical studies have demonstrated that CCK-B receptor
antagonists may find utility in mediating other calming states as well. Sleep
disorders are particularly common in the elderly due to altered awake-sleep
rhythms. In aged rats, a CCK-B receptor antagonist GV-150013, was found useful
in increasing both REM and non-REM sleep. Additionally, no tolerance was
detected after chronic treatment with GV-150013 (Crespi, 1999) . Taken together,
these results suggest that CCK-B receptor antagonists may also result in
improvement in sleep quality.
In addition to synthetically-designed CCK-B receptor antagonists, another approach
for CCK-B receptor antagonist drug design may involve modifications in the
sequence of CCK peptides themselves. Antagonist properties may be introduced
at the peptide level by reducing the length of the sequence or by addition of large,
hindering residues. However, because of low biomembrane permeability and rapid
degradation, polypeptide therapy is often of limited therapeutic value. Another
difficulty with polypeptide therapy is drug delivery across the blood brain barrier.
However, a new class of molecules capable of translocating peptides across plasma
The Advantages and Limitations
of Calmatives for Use as a
Non-Lethal Technique
44

membranes in live cells may be useful as peptidic delivery factors for peptides
shorter than 30 amino acid residues. Furthermore, transport of small peptides
across the blood brain barrier may also be possible via these transport molecules.
Thus, the recent discovery of cell-penetrating peptides may open new possibilities
in the future with respect to biomedical drug delivery (Lindgren et al., 2000) and
CCK-B receptor antagonists may be among the first classes of drugs to benefit
from advances in drug delivery biotechnology.
Taken together, recent biomedical advances suggest that not only does a new
class of calming agents, CCK-B receptor antagonists, need to be explored further,
but also, appropriate delivery methods for getting these compounds to their sites
of action must also be considered. More studies are needed to determine not only
the effectiveness of CCK-B receptor antagonists as inducers of calmative states,
but are also needed to determine the most effective drug designs and delivery
approaches.
SELECTED REFERENCES:
Bradwejn J, Koszycki D, Paradis m, Reece P, Hinton J and Sedman A (1995)
Effect of CI-988 on cholecystokinin tetrapeptide-induced panic symptoms in
healthy volunteers. Biological Psychiatry 38:742-746.
Crespi F (1999) Cholecystokinin-B (CCK-B) receptor antagonists improve
“aged” sleep: A new class of sleep modulators? Methods and Findings in

Experimental Clinical Pharmacology 21:31-38.
Lindgren M, Hallbrink M, Prochiantz A and Langel U (2000) Cell-penetrating
peptides. Trends in Pharmacological Sciences 21: 99-103.
Noble F and Roques BP (1999) CCK-B receptor: Chemistry, molecular biology,
biochemistry and pharmacology. Progress in Neurobiology 58:349-379.
van Megan HJ, Westenberg HG, Den Boer JA and Kahn RS (1996) The panicinducing properties of the cholecystokinin tetrapeptide CCK4 in patients
with panic disorder. European Neuropsychopharmacology 6:187-194.

The Advantages and Limitations
of Calmatives for Use as a
Non-Lethal Technique
45

Recommendations
Continuing Improvements in Drug Delivery
The controlled delivery of macromolecular drugs, such as peptides, proteins,
oligonucleotides and polysaccharides, remain a key issue in the development of
calamative agents as non-lethal techniques. However, while many calmatives
can be effectively administered by oral, subcutaneous injection or intravenous
routes, the development of improved routes of administration as a non-lethal

…controlled delivery…
remain a key issue in the
development of calamative
agents as non-lethal
techniques.

technique. More convenient, painless drug delivery approaches are needed and
the development of these methods is a source of much ongoing research. Briefly,
we will outline a few of the most recent innovations in macromolecular drug delivery
that have considerable potential in the deployment of non-lethal calmative
techniques.
The pharmaceutical industry is focused on development of new and innovative
drugs with improvements in increased potency and specificity while retaining
appropriate pharmacokinetic and pharmacodynamic profiles. While many of the
new drugs are small molecules, such as peptides, other macromolecules such as
oligonucleotides, ribozymes, and charged polysaccharides are much larger.
Typically, large macromolecules are administered by injection or infusion to achieve
the appropriate dose and therapeutic concentrations. Several innovative
approaches are under investigation for improving drug delivery via oral, pulmonary,
subcutaneous and transdermal routes.
While oral delivery remains a convenient route of drug administration, the
gastrointestinal tract continues to present challenges for delivery of agents that
are peptides and proteins. The gastrointestinal tract environment can rapidly
degrade many compounds, alter their solubility as well as stability; the transport of
large molecules across the intestinal mucosa remains difficult. One approach to
address this issue is the use of acylated non-alpha-amino acids as low molecular
weight carriers to increase the intestinal absorption of a drug; a carrier-drug complex
can be formulated as a liquid and administered orally. A different approach is the
use of bioadhesive, bioerodable nanospheres which have been engineered to
bind to the intestine and then penetrate into and between cells for drug delivery.
Other strategies are focused on improving the delivery of targets to specific cell
receptors; this may be less useful in the improved development of calmative agents
with actions in the central nervous system.
As an alternative to oral ingestion of agents, the delivery of drugs across the oral
buccal mucosa is being investigated (see discussion on the 5-HT1A receptor agonist
buspirone). TheraTech Inc. is developing an oral, mucoadhesive bioerodible tablet
The Advantages and Limitations
of Calmatives for Use as a
Non-Lethal Technique
46

that sticks to gum and releases the drug of interest in the opposing buccal tissue. A
phenomena of drug delivery by “chewing gum” may well be acceptable to an individual
on a voluntary basis and/or useful within specific situations of crowd behavior.
The pulmonary route of drug administration continues to offer the advantage of a
rapid, non-invasive method of delivery of peptides and proteins. There is considerable
information available on the size of particle aerosols that can be inhaled; considerable
research and drug development is ongoing in this area (Daddona, 1999).
The use of injectable subcutaneous depot polymer formulations and implantable
devices are under extensive investigation for delivery drug peptides and proteins
for sustained periods of time (months). Maintaining chemical stability and retaining
biological activity following release over extended time periods continues to be a
challenge. The effective use of osmotically-driven titanium implants that can protect
the drug of interest and provide sustained release of the agent is ongoing (Phase

The pulmonary route of
drug administration
continues to offer the
advantage of a rapid, noninvasive method of delivery
of peptides and proteins.

III clinical trials of a Leucopride implant for palliative treatment of advanced prostate
cancer). It is not likely that this route of administration will be suitable for
implementation with non-lethal calmative techniques. However, continued
improvements in this area of drug delivery should be closely monitored.
There are currently numerous transdermal patches marketed that are effective
and safe in providing a controlled delivery of hydrophobic drug molecules through
the outer protective layers of the skin. One approach to improve the delivery of
peptides, proteins and larger macromolecules through the skin is the use of lowfrequency ultrasound to temporarily disrupt the outer skin layer by cavitation and
permit delivery of the drug. The application of absolute alcohol to remove the lipid
layer of the skin, termed “tape stripping”, is also another approach to disrupt the
skin and enhance subsequent passage of a drug into the blood stream for
distribution to the brain. The use of silicon microneedles to pierce the skin and
provide drug delivery is also an area of ongoing development.

…transdermal patches
…are effective and safe in
providing a controlled
delivery of hydrophobic drug
molecules through the outer
protective layers of the skin.

Overall, improvements in encapsulation and delivery techniques will be applicable
to many peptides and proteins that act in the brain to induce a calm state. The
active transport process which serve to protect the brain (the blood brain barrier)
also impede the delivery of many molecules and, hence, require direct surgical
intervention to enter the central nervous system. However, the combined strategies
of chemical modifications to improve delivery as well as new approaches for drug
delivery will provide for future opportunities.
Innovations in drug delivery will be an important strategy towards identification
and improvement of the application of calmatives as non-lethal techniques.

New Improvements with Combinations of Drugs
Synergism is emerging as an important area in the applied use of pharmaceutical
agents that are active in the central nervous system. Synergism is more than just
the additive effect of one compound added to a second compound; it is the principle
that two drugs may ultimately may be more effective and have greater effect than
The Advantages and Limitations
of Calmatives for Use as a
Non-Lethal Technique
47

predicted by the application of each agent alone. In the clinical setting of the
operating room where anesthetic agents are in constant use, demonstrations are
emerging daily that indicate that either the doses of combined agents may be
reduced to achieve a maximal effect and/or a wider spectrum of action is achieved
with selected combinations of agents. This approach may offer considerable
advantages in the design of an ideal non-lethal calmative technique.

Developing Partnerships with the
Pharmaceutical Industry
The pharmaceutical and biotechnology industries in the United States and abroad
are now often surpassing the traditional academic settings in conducting basic
and applied pharmacology research. In addition, it is well known that for every
one new compound successfully proceeding from the discovery phase through all
phases of clinical trials and on to market, perhaps hundreds, if not thousands, of
compounds are discarded or shelved by the pharmaceutical industry. Often an
unwanted side effect, such as gastrointestinal distress, will terminate the

The use of pharmacological
agents to produce a calm
behavioral state …is a topic
with high relevance to
achieving the mission of law
enforcement and military
communities.

development of a promising new pharmaceutical compound. However, in the variety
of situations in which non-lethal techniques are used, there may be less need to
be concerned with unattractive side-effects; indeed, perhaps a calmative may be
designed that incorporates a less than desirable side-effect (e.g. headache, nausea)
as part of the drug profile. Furthermore, it may be appropriate to develop a working
relationship with the pharmaceutical industry to better incorporate their knowledge
and expertise in developing a non-lethal calmative technique. Perhaps, the ideal
calmative has already been synthesized and is awaiting renewed interest from its
manufacturer.
SELECTED REFERENCES:
Behr, J.P., and Demeneix, B.A. (1998) Gene delivery with polycationic amphiphiles
and polymers. Current Research in Molecular Therapeutics 1(1):5-12.
Daddona, P.E. Recent advances in peptide, protein and macromolecule drug
delivery. (2000) Current Opinion in Drug Discovery & Delivery 2(2):168-171.
Lindgren, M., Hallbrink, M., Prochiantz, A and Langel, U. (2000) Cell-penetrating
peptides. Trends in Pharmacol. Sci. 247:99-103.
Schwartz, J.J. and Zhang, S. (2000) Peptide-mediated cellular delivery. Current

Opinion in Molecular Therapeutics 2(2):162-167, 2000.

Closing Comments
The use of pharmacological agents to produce a calm behavioral state, particularly
as relevant to management of individuals and/or groups that are agitated,
aggressive and/or violent, is a topic with high relevance to achieving the mission
of law enforcement and military communities. The extensive review conducted on
the medical literature and new developments in the pharmaceutical industry has
confirmed the relevance and high potential impact of calmatives as a non-lethal
technique. Whether used alone or as an adjuvant to enhance the effectiveness of
other types of non-lethal techniques, pharmacological agents can effectively act
on central nervous system tissues and produce a less anxious, less aggressive,
more tranquil-like behavior and, ultimately, an easier to manage individual. The
The Advantages and Limitations
of Calmatives for Use as a
Non-Lethal Technique
48

wide variety of drug classes and specific agents highlighted in this report serve to
underscore that the development and use of non-lethal calmative techniques is
achievable and desirable.
It is recommended that further research be continued regarding calmatives as
non-lethal techniques. The classes of agents and the compounds highlighted indepth should receive additional consideration, including collection of basic and
applied research information on their pharmacological profiles as well as data on
dose-response curves and duration of action profiles following specific routes of
administration. Further research efforts should be directed at identifying the most
promising routes of drug delivery that may be effective in the varied settings in
which non-lethal techniques are to be deployed. It is also recommended that
consideration of partnerships with the pharmaceutical industry be explored in order

…the development and use
of non-lethal calmative
techniques is achievable
and desirable.

to achieve the goal of a safe and effective use of calmatives as non-lethal
techniques.
This report serves to highlight the importance of developing the use of
pharmacological agents, such as calmatives, for use as a non-lethal technique.
Several major classes of pharmaceutical agents also merit similar review including
1) drugs of abuse (including selected club drugs) and 2) convulsants. These classes
of compounds can effectively impart many of the same qualities that have been
identified in this report for the central nervous system depressants highlighted in
this report. We recommend that these classes of compounds be evaluated in the near

Several major classes of
pharmaceutical agents also
merit similar review
including 1) drugs of abuse
(including selected club
drugs) and 2) convulsants.

future in order to identify the most promising candidates for use as non-lethal techniques.

The Advantages and Limitations
of Calmatives for Use as a
Non-Lethal Technique
49





The Habeas Citebook: Prosecutorial Misconduct Side
PLN Subscribe Now Ad 450x450
Stop Prison Profiteering Campaign Ad 2
